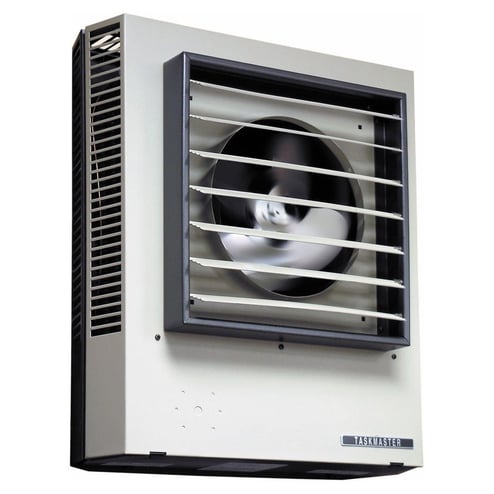

TPI TPI HF3B5160CA1


Description

Industry Description

Suspended Fan Forced Unit Heater, 3 PH, 60/45 KW, 240/208 V, Bracket Mounting, Steel Housing Material, Dimensions- 30-1/2 Width X 35-1/2 Height X 14-1/2 Depth IN, BTU Rating- 204700/153600, 144.6/125 AMP, Air Flow- 3400 CFM

Modified Industry Description

60KW 240/208V 3P 5100 SERIES UNIT

AD Description

TPI HF3B5160CA1 5100 3-Phase Fan Forced Suspended Unit Heater, 60/45 kW, 208/240 VAC

Specifications

Application
Indoor-Commercial/Industrial
Country of Origin
US
Dimensions
30-1/2 X 35-1/2 X 14-1/2
Length1
36.0000
Mounting
Bracket
Phase
3
Special Features

  • All units come equipped with manual reset type limit controls to de-energize the heater should an over temperature situation occur
  • Heavy gauge steel cabinet with powder coated finish and control compartment housing a master terminal board
  • Single speed 1-phase permanently lubricated, thermally protected motors with ball bearings
  • Summer fan switch to operate the fan only and a heat stratification thermostat for high bay areas
  • The control compartment allows for access through a hinged and latched door, simplifying wiring, installation and maintenance
  • The fan override purges the unit of residual heat at shutdown
  • The heating element is a copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow
Standard
cETLus Listed
Sub_Brand
TPI
Type
Suspended Fan Forced
Voltage Rating
208/240
Wattage
45/60
