Appleton Appleton EFD275ANLQ
Appleton EFD275ANLQ
Kirby Risk #: 2495945
UPC: 78138162824, 781381628242, 00781381628242
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description

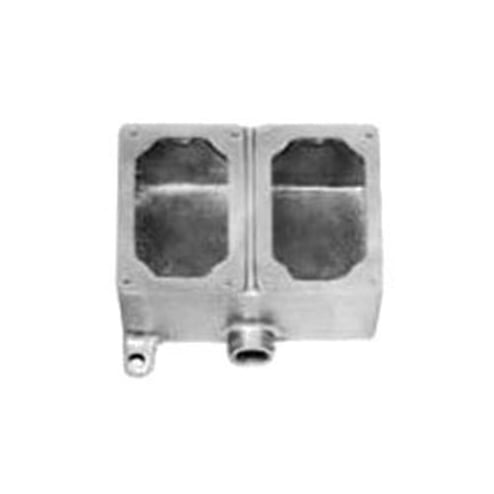

2-Gang Dead-End Mounting Body, Number Of Outlet: 1, Material: Aluminum, Size: 3/4 IN, Cable Entry: (1) 3/4 IN Hub, Mounting: Lugs, Width: 6.19 IN, Height: 6.38 IN, Enclosure: NEMA 7CD, 9EFG, Standard: UL 508, 698, 1203, UL File Number E10449, E81751, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For U-Line 20 AMP Receptacles, EDS Series Factory Sealed Manual Motor Starters, CPS 20 AMP Receptacles, EFD/EFDB and EDS Series Control Stations
Modified Industry Description
EFD MOUNTING NO ON SPC DECK
Specifications
| Application |
For U-Line 20 AMP Receptacles, EDS Series Factory Sealed Manual Motor Starters, CPS 20 AMP Receptacles, EFD/EFDB and EDS Series Control Stations
|
|---|---|
| Color |
Gray
|
| Country of Origin |
MX
|
| Dimensions |
6.81 in H x 6.19 in W x 4.13 in D
|
| Finish |
Baked Epoxy Coated
|
| Length1 |
3.0000
|
| Material |
Aluminum
|
| Mounting |
Lugs
|
| Mounting_Type |
Lug
|
| Series |
EFD
|
| Size |
3/4
|
| Special Features |
|
| Standard |
UL 508, 698, 1203, UL File Number E10449, E81751, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
|
| Sub_Brand |
Appleton
|
| Type |
Dead End
|
