Siemens Siemens WEP3311
Siemens WEP3311
Kirby Risk #: 2494759
UPC: 04089287590, 040892875904, 00040892875904
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage s Multi-Family Metering Line of PAK Metering EUSERC as partof the PAK Metering EUSERC Group. Type UNI-PAK Features NO BYPASS EUSERC CERTIFIED Appn GARDEN - STYLE Std UL-50,67,414 V. Rating 120/240V A. Rating 300A Phase1PH Size 9.00 x 25.68 x 39.630 No. Of Cutouts 11 Cutout Size 1 x (1/2,3/4,1,1-1/4 ), 6 x (2-1/2,2 ,1-1/2,1-1/4,1 ), 2 x (4,3-1/2,3,2-1/2,2 ), 2X4 Cable Entry TOP OR BOTTOM FEED Terminal 3X2 STUDS. Insulated.Appn . Wall Mounted. Enclosure RING
Modified Industry Description
300A 4J 125A/3POS RING PAK NO BPS
AD Description

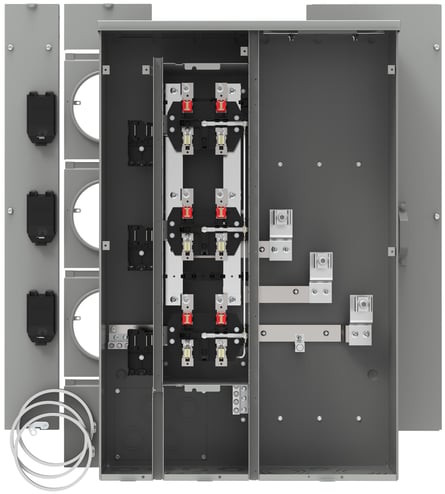

Siemens WEP3311 Type WEP Uni-PAK Meter Pack, 125 A Self-Contained Socket, Top/Bottom Feed, 120/240 VAC, 300 A Bus
Specifications
| Amperage Rating |
300
|
|---|---|
| Application |
SERVICEENTRANCEEQUIPMENT
|
| Country of Origin |
US
|
| Dimensions |
38.75 in H x 25.42 in W x 7.56 in D
|
| Enclosure |
Ring
|
| Frequency_Rating |
TRUE
|
| Length1 |
39.6300
|
| Mounting |
SURFACEMOUNTING
|
| Mounting_Type |
Surface
|
| Phase |
1
|
| Size |
3
|
| Special Features |
|
| Standard |
UL50/UL67/UL414
|
| Sub_Brand |
Uni-PAK
|
| Type |
Type WEP Uni-PAK
|
| Voltage Rating |
120/240
|
