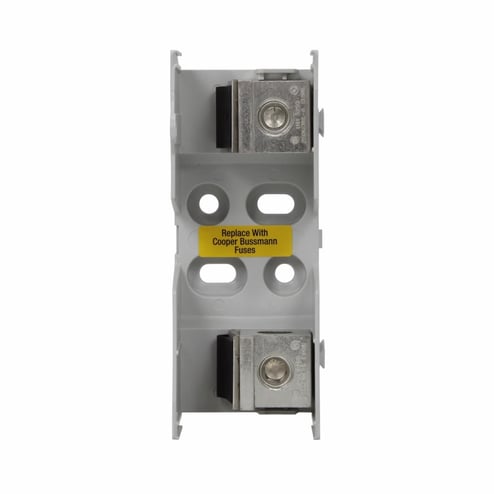

Bussmann Bussmann JM60200-1CR


Description

Industry Description

Fuse Block, One-pole

Modified Industry Description

200A 600V - CLASS J 1 POLE FUSE HOLDER

AD Description

Bussmann JM60200-1CR Fuse Block, 600 VAC, 110 to 200 A, Class J, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil Wire, 1 Pole

Specifications

Amperage Rating
110 to 200
Application
Electrical Assemblies/Panels/EOEMs
Brand Name
Bussmann
Class
J
Connection
Knife blade end x knife blade end
Country of Origin
MX
Fuse_Diameter
1.63
Material
Thermoplastic
Package_Quantity
1
Poles
1
Special Features

  • (1) 6 AWG to 250 kcmil copper/aluminum, (1) 6 to 2 AWG copper/aluminum, (2) 6 to 2 AWG copper wire
  • 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG copper solid and stranded 1 to 3/0 AWG, 6 to 2 AWG copper fine stranded wire
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards (UL 98, UL 69, UL 489, UL 891 and UL 869A)
  • 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
  • Blocks dovetail together to assemble required number of poles
  • Design meets UL creep and clearance requirements for industrial control circuits (UL 508 and UL 845)
  • Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
  • Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
  • Integral dovetails allow snapping together multiple poles at point of use for greater application flexibility
  • Standard fuse clip reinforcing springs enhance electrical contact
  • Standard phase barriers between poles for additional safety
  • Up to four mounting holes per pole increase installation flexibility
Standard
Contact factory
Sub_Brand
Eaton
Type
Block
Voltage Rating
600
