Panduit Panduit LCAX450-58-6


Description

Industry Description

One-hole, flex lug, 450 kcmil cable, 5/8 stud hole.

Modified Industry Description

Copper Compression Lug, 1 Hole, 450

AD Description

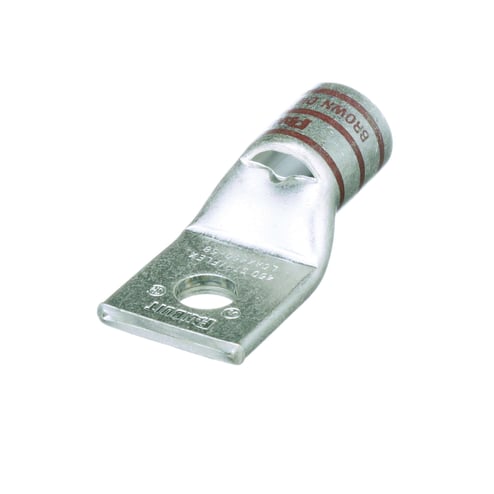

Panduit® Pan-Lug™ LCAX450-58-6 1-Hole Compression Lug, 450 kcmil Class G, H, I, K, M and 444.4 kcmil DLO Copper Conductor, Die Code: P87, 5/8 in Stud, Tin Plated Copper

Specifications

Color
Brown
Conductor Type
Copper
Conductor Size
450 kcmil Class G, H, I, K, M and 444.4 kcmil DLO
Country of Origin
MEX
Length1
4.7000
Material
Tin Plated Copper
Mounting
1 7/16
Series
LCAX
Size
450 kcmil Class G, H, I, K, M and 444.4 kcmil DLO
Special Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Color-coded bands for proper die selection and crimp placement
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to assure complete conductor insertion
  • Tin-plated to inhibit corrosion
Standard
C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Sub_Brand
Panduit
Temperature_Rating
90
Type
1-Hole
Voltage Rating
35
