O-Z/Gedney O-Z/Gedney SR1501750


Description

Industry Description

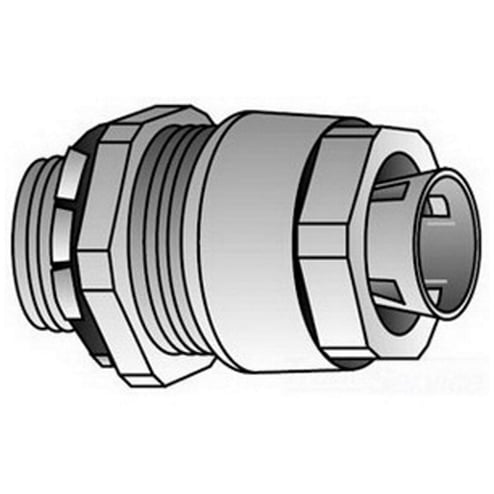

OZ-Gedney Type SR Dual Grommet Strain Relief Straight Connector, Size: 1-1/2 IN, Conductor Range: 1.375 - 1.75 IN, Malleable Iron Body And Gland Nut, Nylon Gripper, Neoprene Grommet, PVC Or Buna-N Sealing Ring, Steel Locknut, Finish: Zinc Plat

Modified Industry Description

1-1/2 IN STR STRAIN RLF CONN

Specifications

Application
For Securing And Sealing Cords Or Cables Entering Enclosures Or Raceways
Connection
Tapered MNPT
Country of Origin
MX
Dimensions
3 in Dia x 1.63 in L
Enclosure
NEMA 4
Finish
Zinc Plated
Length1
5.7000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
SR Series
Size
1-1/2
Special Features

  • Colored gripper allows for easy identification
  • Dual-grommet style for over 1 in diameter cord range
  • Furnished complete with sealing ring and locknut
  • Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal
  • Liquid tight or oil tight or raintight
  • Removable insert allows for wider range of cable diameters within single fitting
  • Suitable for NEMA 4 enclosures and other wet locations
  • UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub
Standard
Third Party Certification: UL File Number E-11857, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, Suitable for use in Hazardous Locations under NEC Sec. 501-4(b), 502-4(a) (2), and 503-3(a), For Class I, Division 2, Class II, Division 1, 2, and Class III, Division 1, 2
Sub_Brand
O-Z/Gedney
Temperature_Rating
90
Type
Strain Relief
