Lutron Lutron RRD-W3BSRL-WH


Description

Industry Description

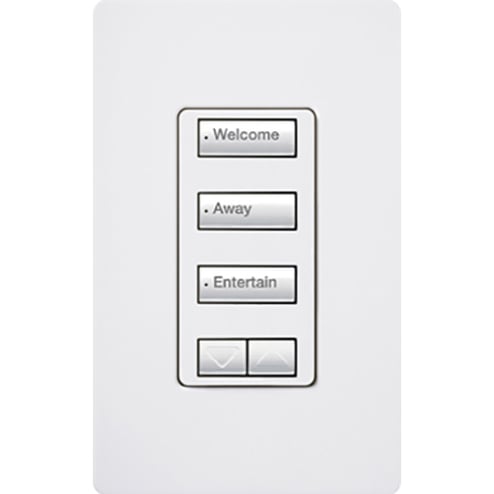

RadioRA 2 Wall-mounted Keypad, 3-button spaced keypad with raise/lower in white

Modified Industry Description

RA2 3BSRL WALL KEYPAD

AD Description

Lutron® RadioRA® 2 RRD-W3BSRL-WH 3-Button Designer Keypad, 120 VAC, 0.5 A, Fade/Toggle On/Off Operation Mode, White

Vendor Description

RadioRA® 2 wall mount designer keypads provide homeowners with a simple and elegant way to operate lights, shades/draperies, motorized screens and many other devices. RadioRA® 2 keypads feature large, easy to use buttons, plus a unique backlit engraving option that makes the keypads readable any time of the day or night. The keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. Replacement kits are available in a variety of colors and with custom engraving to clearly identify each button's function. The flexible design of the keypads allow the color, number of buttons and the configuration of the buttons to be changed after the keypad is installed. Use only Lutron® designer (Claro® or Satin Colors®) wallplates. The mechanical design of the keypad is only compatible with Lutron® wallplates and is not compatible with any other manufacturer's wallplate. Wallplates are sold separately. Lutron® Claro® and Satin Colors® wallplates snap on with no visible means of attachment.

Specifications

Amperage Rating
0.5
Application
Lighting and Shade Control
Color
White
Country of Origin
MX
Dimensions
4-11/16 in H x 2-15/16 in W x 5/16 in D
Finish
Gloss
Frequency_Rating
50/60
Length1
4.0000
Material
Metal/Plastic
Mounting
Wall Mount
Mounting_Type
Wall
Series
RRD-W3BSRL
Size
4.69in (119mm) X 2.94in (75mm)
Special Features

  • 0 to 90% humidity
  • 3 button with raise/lower keypad
  • 3-button with raise/lower keypad
  • Adjustable backlight intensity
  • At the press of a single button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions
  • Configurable raise/lower selection last button or IR room/ scene (default) devices controlled by the last button pressed or last IR room/ scene selected will raise/lower, double-tap devices controlled by a double-tapped button will raise/lower
  • Double tap devices controlled by a double tapped button will raise/lower
  • ESD protection tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2
  • IR receivers at the back of the keypad allow for the use of an IR repeater kit integration
  • Last button or IR room/scene (default) devices controlled by the last button pressed or last IR room/scene selected will raise/lower
  • Light levels and shade/drapery positions can be fine tuned by pressing and holding the raise/lower buttons
  • Light levels and shade/drapery positions can be fine-tuned by pressing and holding the raise/lower buttons
  • Non-condensing
  • Programmable to select scene or room preset levels or positions
Standard
UL CSA NOM FCC IC COFETEL
Sub_Brand
Lutron
Temperature_Rating
0 to 40
Type
Replacement Kit
Voltage Rating
120
