Panduit Panduit LAB1000-12-1

Name: Panduit LAB1000-12-1
Brand: Panduit
SKU: 2479496
Price: 128.09 USD
Availability: InStock

Panduit LAB1000-12-1

Kirby Risk #: 2479496

UPC: 07498391190, 074983911905, 00074983911905

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Two-hole, aluminum, long barrel, 1000 kcmil, 1/2 (12.7mm) stud hole.

Modified Industry Description

ALUMINUM COMPRESSION LUG, 2 HOLE,

AD Description

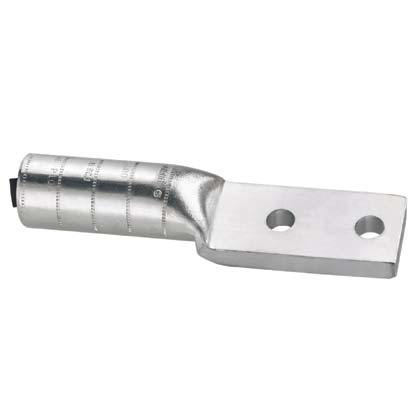

Panduit® Pan-Lug™ LAB1000-12-1 2-Hole Compression Lug, 1000 kcmil Aluminum/Copper Conductor, Die Code P161, 1/2 in Stud, Tin Plated Aluminum

Color	Brown
Conductor Type	Aluminum/Copper
Conductor Size	1000
Country of Origin	MUL
Length1	12.7000
Material	Tin Plated Aluminum
Mounting	4 3/4
Series	LAB
Size	1000 kcmil Code
Special Features	Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion Manufactured from high conductivity thick wall wrought aluminum Tin-plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
