Cooper Wiring Cooper Wiring 270W
Cooper Wiring 270W
Kirby Risk #: 2478140
UPC: 03266475083, 032664750830, 032664542725, 00032664750830
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Cooper Wiring
Description
Industry Description
Recp Duplex 15A 125V 2P3W Str WH 4750830
Modified Industry Description
15A 125V 2 POLE 3 WIRE WHITE DUPLEX RECEPTACLE STANDARD GRADE
AD Description

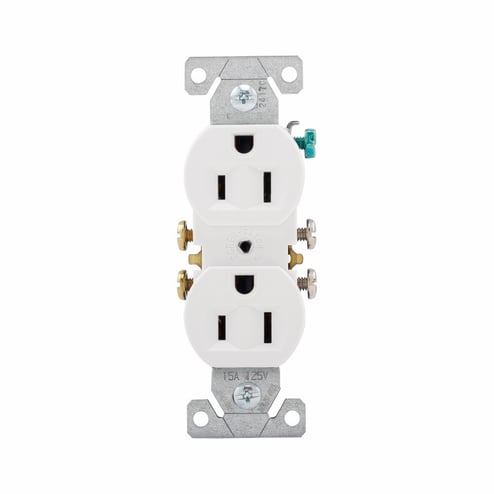

EATON Wiring Devices 270W Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Vendor Description
Standard duplex receptacles feature longer, wider straps providing 40% more contact area to wall board. virtually eliminates floating installations. patented built-in wire stripper for #14 and #12 wire to speed installation. patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips® and robertson head tools for installation flexibility. terminal screws backed out ready for wiring. side wire terminals accept up to #10 solid or stranded wire. push-in terminals accept #14 solid wire.
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
STANDARD GRADE RECEPTS
|
| Brand Name |
Cooper Wiring
|
| Color |
White
|
| Connection |
SCREW
|
| Conductor Size |
14 To 10 AWG
|
| Country of Origin |
US
|
| Dielectric_Strength |
125 Vac
|
| Environmental_Conditions |
See Spec Sheet
|
| Grade |
Standard
|
| Insulation |
Receptacles
|
| Material |
Thermoplastic
|
| Mounting |
Flush
|
| NEMA_Rating |
NEMA 5-15R
|
| Number_Of_Poles |
2
|
| Number_Of_Wires |
3
|
| Size |
1.31 In Width X 0.69 In Depth X 4.19 In Height
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
Eaton Wiring Devices
|
| Temperature_Rating |
-20 to 60
|
| Type |
Duplex
|
| Voltage Rating |
125
|
