Panduit Panduit DNF18-111FIB-3K
Panduit DNF18-111FIB-3K
Kirby Risk #: 2477241
UPC: 07498382680, 074983826803, 00074983826803
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

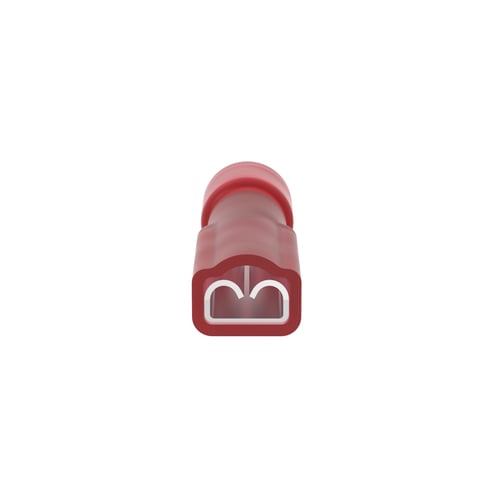

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
Modified Industry Description
FEMALE DISCONNECT, NYLON FULLY
AD Description
Panduit® Reel Smart™ DNF18-111FIB-3K Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Butted Seam Barrel, Brass, Red, Fully Insulated
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Stranded
|
| Connection |
Funnel Entry
|
| Conductor Size |
22 to 18
|
| Country of Origin |
MEX
|
| Dimensions |
0.71 in L x 0.19 in W x 0.15 in H
|
| Finish |
Tin Plated
|
| Insulation |
Nylon - Fully Insulated
|
| Length1 |
26.1000
|
| Material |
Brass
|
| Mounting |
7/32
|
| Series |
DNF-FIB
|
| Special Features |
|
| Standard |
UL 310 Listed
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
221
|
| Type |
Fully Insulated Vibration Resistant
|
| Voltage Rating |
600
|
