Panduit Panduit DNF14-188-M


Description

Industry Description

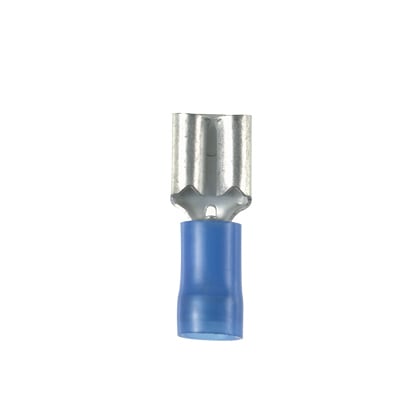

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.

Modified Industry Description

FEMALE DISCONNECT, NYLON BARREL

AD Description

Panduit® Pan-Term® DNF14-188-M Vibration-Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Sleeve Barrel, Brass, Blue, Insulated

Specifications

Color
Blue
Conductor Type
Stranded
Connection
Funnel Entry
Conductor Size
16 to 14
Country of Origin
MEX
Dimensions
0.76 in L x 0.23 in W x 0.1 in H
Finish
Tin Plated
Insulation
Nylon - Barrel Insulated
Length1
7.1500
Material
Brass
Mounting
1932-09-01
Series
DNF
Special Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Standard
UL 310 Listed
Sub_Brand
Panduit
Temperature_Rating
194
Type
Insulated Loose Piece Vibration Resistant
Voltage Rating
300
