3M 3M RV10-516Q


Description

Industry Description

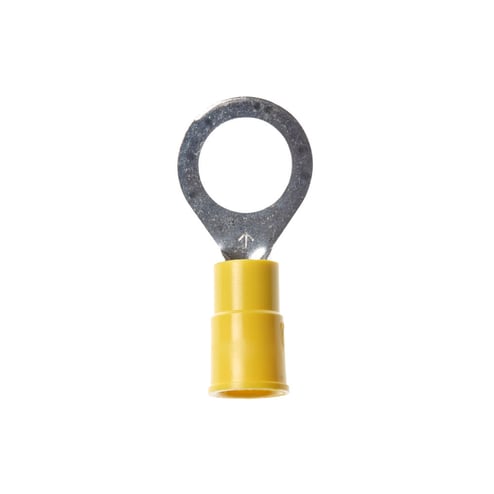

3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

RING VINYL INSULATED HIGHLAND BAG

AD Description

Highland™ 051128-60035 Ring Terminal, 12 to 10 AWG Conductor, 1.26 in L, Butted Barrel, Yellow

Specifications

Color
Yellow
Conductor Type
Tin Plated Copper
Connection
Ring
Conductor Size
12 to 10 AWG
Country of Origin
US
Dimensions
0.53 in W x 0.04 in THK
Length1
1.26 in
Material
PVC
Special Features

  • 0.25 in maximum insulation outer diameter
  • 0.4 in clearance
  • 600 V-rated for building wire and 1000 V for signs, fixtures or luminaires
  • Crimp connection
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard vinyl insulation
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Standard
UL CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Ring Terminal
Voltage Rating
1000 VAC
