3M 3M MTI18-250Q


Description

Industry Description

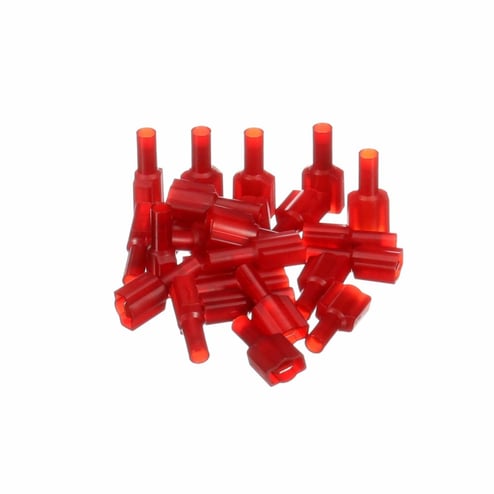

3M™ Highland™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

MALE DISCONNECT NYLON FULLY INS

AD Description

3M™ Highland™ MTI18-250Q Insulated Male Disconnect, 22 to 18 AWG Conductor, 1/4 in Tab, Butted Seam Barrel, Copper Plated, Red

Vendor Description

3M Highland Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect.

Specifications

Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
US
Dimensions
0.95 in L x 0.44 in W
Finish
Tin Plated
Length1
5.7500
Material
Copper Plated
Special Features

  • 1000 V for signs, fixtures or luminaires
  • 25/Bag
  • Allows for quick and easy disconnect of wires
  • Butted-seam barrel offers easy insertion of wires
  • Fully nylon insulated
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Male disconnect terminal offers excellent holding force
  • Mates with 0.25 in wide female tab
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated
Voltage Rating
600 VAC
