3M 3M FDI18-250Q


Description

Industry Description

3M™ Highland™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

FEMALE DISCONNECT FULLY NYLON INS

AD Description

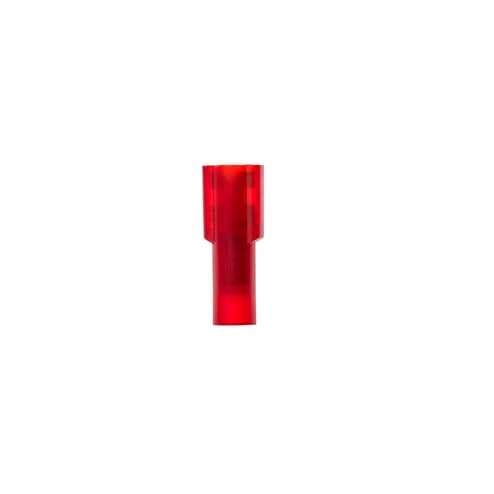

Highland™ FDI18-250Q Female Wire Disconnect, 22 to 18 AWG Conductor, 0.032 x 0.25 in Tab, Brass, Red, Insulated

Specifications

Color
Red
Conductor Type
Tin Plated Brass
Conductor Size
22 to 18 AWG
Country of Origin
US
Length1
5.7500
Material
Nylon
Special Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.25 in wide male tab
  • Nylon insulated, butted-seam barrel offers easy insertion of wires
  • Rated 600 V for building wire and 1000 V for signs, fixtures or luminaires
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Female
Voltage Rating
600 VAC
