Panduit Panduit LAA2-56-X

Name: Panduit LAA2-56-X
Brand: Panduit
SKU: 2470973
Price: 12.24 USD
Availability: InStock

Panduit LAA2-56-X

Kirby Risk #: 2470973

UPC: 07498391015, 074983910151, 00074983910151

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-hole, aluminum, long barrel, #2 AWG, 5/16 (7.9mm) stud hole.

Modified Industry Description

2 AWG 5/16 IN 1 HOLE LONG AL COMP LUG

AD Description

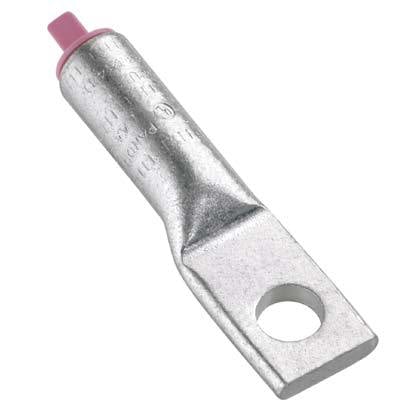

Panduit® LAA2-56-X 1-Hole Compression Lug, 2 AWG Aluminum/Copper Conductor, Die Code: P42, 5/16 in Stud, Tin Plated Aluminum

Color	Pink
Conductor Type	Aluminum/Copper
Conductor Size	2
Country of Origin	MUL
Length1	3.0000
Material	Tin Plated Aluminum
Mounting	1
Series	LAA
Size	#2 Code
Special Features	1 in L wire strip Color coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Factory pre filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion For use with stranded aluminum or copper code conductors Manufactured from high conductivity thick wall wrought aluminum Straight angle Tin plated to inhibit corrosion
Standard	CSA Certified, UL listed 486A-486B File #E52164
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
