Description

Industry Description

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.

Modified Industry Description

SUPER TAN CONNECTOR (KEG)

AD Description

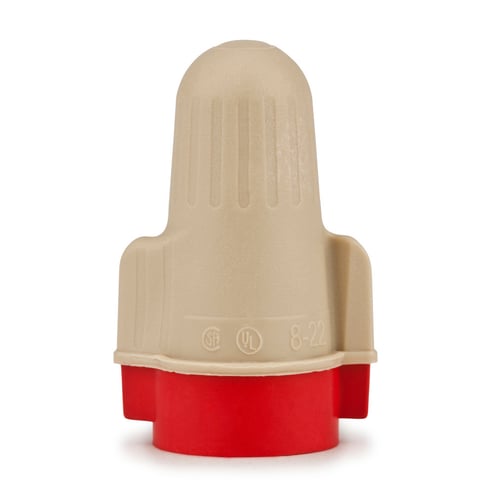

3M™ 051128-54456 Performance Plus T/R+ Flame Retardant Twist-On Wire Connector, Winged Shell, Live Action/Square Wire Spring, 22 to 8 AWG Aluminum/Copper Wire, Spring Steel

Vendor Description

Specifically created for the residential markets, the T/R+ replaces the yellow, tan and red connectors in the majority of field applications.

Specifications

Color
Red/Tan
Connection
Twist On
Country of Origin
US
Length1
20.0000
Material
Spring Steel
Series
Performance Plus T/R+
Special Features

  • (2)18 AWG up to (5) 12 AWG wire combinations
  • 1000 VAC for signs, fixtures or luminaires
  • 25000/kg
  • Compact size and red miniskirt
  • Corrosion resistant coating
  • Flame retardant
  • One connector replaces 3 (yellow, red and tan) in the majority of all field applications
  • Polypropylene and thermoplastic elastomer insulation
  • Quick bite spring design
  • Simplifies selection of the right connector for a wide range of wiring jobs
  • Smooth, comfortable feel
  • Specifically created for the residential markets
Standard
UL CE and CSA
Sub_Brand
3M
Temperature_Rating
221
Type
Flame Retardant
Voltage Rating
600
