Panduit Pan-Net PFR6X04WH-CG
Kirby Risk #: 2465155
UPC: 07498363959, 074983639595, 00074983639595
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

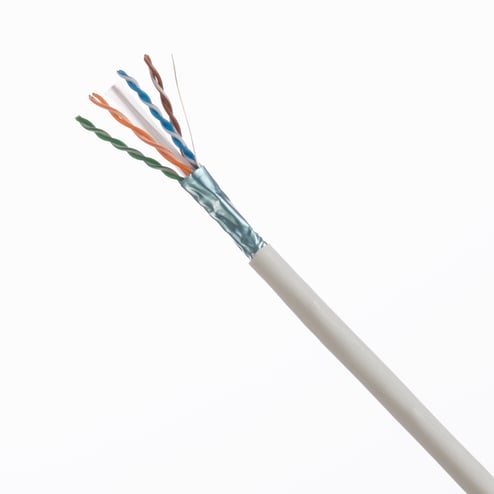

Category 6A, riser (CMR) 4-pair F/UTP shielded copper cable. Conductors are 23 AWG with PE insulation. Conductors are twisted in pairs, separated by an integrated pair separator, all four pairs surrounded by an overall metallic foil shield and protected by a low smoke zero halogen jacket.
AD Description
Panduit® TX6A™ 10Gig™ PFR6X04WH-CG Cat 6A CMR Flame Retardant Copper Cable, 80 VAC, (4-Pair) 23 AWG F/UTP Shielded Solid Bare Copper Conductor, 1000 ft Reel L
Vendor Description
Cat 6A cable shall be constructed of 23 AWG copper conductors with PE CM, CMR or LSZH insulation. The copper conductors shall be twisted in pairs and separated by an integrated pair separator. All four pairs shall be surrounded by an overall metallic foil shield within a low smoke zero halogen jacket. The TX6A™ 10Gig™ Shielded Copper Cable must be installed as part of a complete TX6A™ 10Gig™ Shielded Copper Cabling System to achieve 10GBASE-T certified performance.
Specifications
| Application |
10GBASE-T Ethernet, Data Center applications and Virtual business management applications
|
|---|---|
| Color |
White
|
| Construction |
F/UTP
|
| Country of Origin |
USA
|
| Length1 |
44.0000
|
| Number Of Conductors |
4
|
| Outside_Diameter |
NA
|
| Special Features |
|
| Standard |
Exceeds the requirements of ISO 11801 Class EA and ANSI/TIA-568-C.2 Category 6A standards; Meets or exceeds the component requirement of the ISO/IEC 11801 Category 6A and ANSI/TIA-568-C.2 Category 6A standards ; Standards compliance: UL Listed CMP-LP 0.7A
|
| Sub_Brand |
Pan-Net®
|
| Temperature_Rating |
NA
|
| Type |
Copper Cable
|
| Voltage Rating |
NA
|
