Southwire Southwire 12 SOLCU THHN-THWN AWM
Southwire 12 SOLCU THHN-THWN AWM
Kirby Risk #: 2465066
UPC: 03288687896, 032886878961, 00032886878961
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
12 SOL CU THHN-THWN AWM GRAY WITH YELLOW STRIPE 500 FT
Modified Industry Description
12 SOLCU THHN-THWN AWM GRAY/YELLOW
AD Description

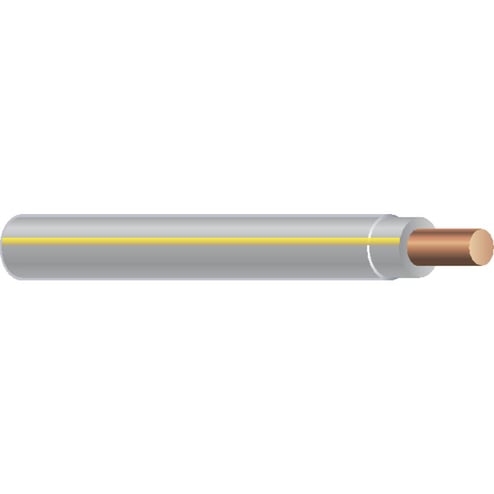

Southwire® NoLube® SIMpull® 57530502 Type THHN THWN AWM Building Wire, 600 VAC, (1) 12 AWG Stranded Copper Conductor, 500 ft Spool L, Gray/Yellow
Vendor Description
Southwire® SIMpull® THHN® copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic order quantity. Marked as THHN in all sizes. Also marked as THWN-2 in sizes 8 AWG and larger or marked as THWN in sizes 14, 12, and 10 AWG. Marked sunlight resistant in sizes 2 AWG and larger. Sizes 14, 12, and 10 AWG are available with SIMpull® technology only in SIMpull® BARREL cable drum or SIMpull® CoilPAK™ configurations.
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Commerical
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
12 AWG
|
| Country of Origin |
USA
|
| Length1 |
500 ft Spool
|
| Number Of Conductors |
1
|
| Outside_Diameter |
128
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Temperature_Rating |
90
|
| Type |
Type THHN THWN AWM
|
| Voltage Rating |
600
|
