Appleton Appleton APPT29


Description

Industry Description

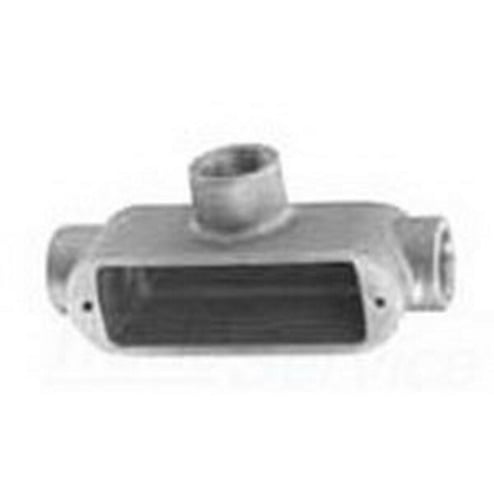

FM9 UNILETS Type T Conduit Outlet Body, Hub Size: 3/4 IN, Form: 9, Length: 5.69 IN, Width: 2.38 IN, Height: 1.81 IN, Material: Aluminum, Finish: Natural Aluminum, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number

Modified Industry Description

3/4 FM9 UNILET - T

Specifications

Application
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection
Tapered Female Threaded
Country of Origin
MX
Dimensions
5.69 in L x 1.81 in H
Enclosure
NEMA FB-1
Finish
Natural
Length1
8.4000
Material
Copper Free Aluminum
Special Features

  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Aluminum UNILETS™ produced from a high strength copper free aluminum alloy, for light weight and high corrosion resistance
  • Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers
  • Cover screws are captive to prevent loss in sizes
  • Covers are domed for extra wiring space
  • FM9™ covers with integral gasket are approved for use in wet locations
  • Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
  • Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity
  • Seven body style
  • Smooth hub bushings and cover openings protect conductor insulation
  • Smooth hub openings allow easy conduit joining
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Sub_Brand
Appleton
Type
Type T
