Panduit Panduit LCC4-14AW-L
Panduit LCC4-14AW-L
Kirby Risk #: 2459663
UPC: 07498379783, 074983797837, 00074983797837
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

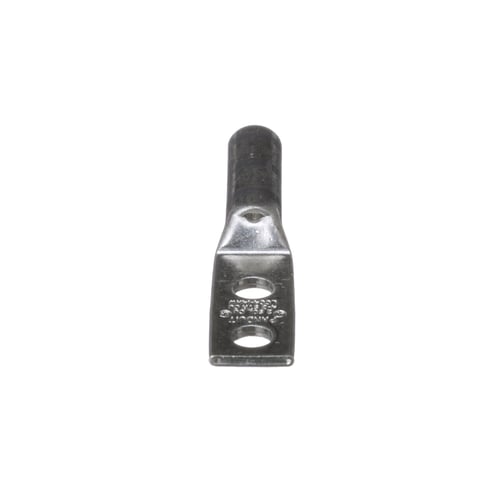

Two-hole, long barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .63 hole spacing.
Modified Industry Description
COPPER COMP. LUG, 2 HOLE, #4 - #3
AD Description
Panduit® Pan-Lug™ LCC4-14AW-L LCC-W 2-Hole Compression Lug, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 1/4 in Stud, Tin Plated Copper
Specifications
| Color |
Gray
|
|---|---|
| Conductor Type |
Solid/Stranded Copper
|
| Conductor Size |
4 to 3, 2
|
| Country of Origin |
MEX
|
| Length1 |
5.7000
|
| Material |
Tin Plated Copper
|
| Mounting |
1 1/8
|
| Series |
LCC-W
|
| Size |
#4 – #3 Code STR, #2 Code SOL
|
| Special Features |
|
| Standard |
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
90
|
| Type |
2-Hole
|
| Voltage Rating |
35
|
