Burndy Burndy YA25A7


Description

Industry Description

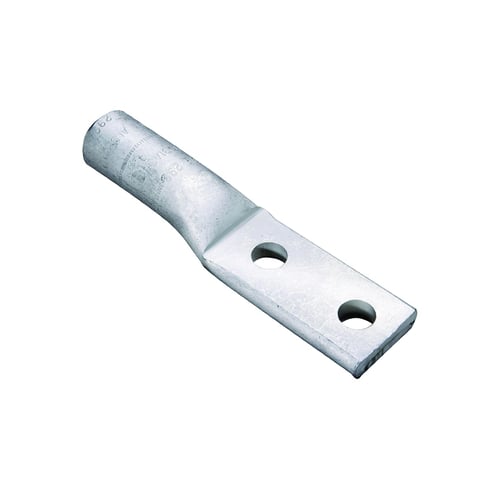

Aluminum Compression Lug, 2 Hole w/o Inspection Window, 1/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Long Barrel, Tin Plated.

Modified Industry Description

CU COMPR LUG 2 HOLE 1/0 AWG 1/2 STUD LONG

AD Description

BURNDY® HYLUG YA25A7 YA-A 2-Hole Non-Insulated Compression Lug, 1/0 AWG Aluminum/Stranded Copper Conductor, Die Code: 296, 1/2 in Stud, Aluminum

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance. Aluminum compression connectors are manufactured from high conductivity, high purity wrought aluminum. They are designed with sufficient mass and are electro-tin plated to minimize corrosion due to galvanic action between dissimilar metals. The connector barrels are pre-filled with PENETROX®, BURNDY® oxide inhibiting compound.

Specifications

Application
For Aluminum And Copper Conductors
Color
Tan
Conductor Type
Aluminum/Stranded Copper
Conductor Size
1/0
Country of Origin
US
Insulation
None
Length1
4.5900
Material
Aluminum
Series
YA-A
Special Features

  • 1 AWG stranded conductor size
  • 1.75 in hole center to center distance, 0.63 in hole center to end, 0.72 in hole center to barrel
  • Color coded end caps inserted in barrel end
  • Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps
  • Factory prefilled with PENETROX® oxide inhibiting compound
  • For die set catalog number and (number of crimps): Y35, Y39, Y750 tool, (1) U1CART die, Y46 tool, U1CART die with (1) PUADP-1 adapter, dieless tools (number of crimps): mechanical: (1) MY29-3, MRC840AL tool, hydraulic HYPRESS: (1) Y644HS tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V installation tool
  • Internally beveled barrel
  • Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness
  • Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
  • Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
  • Provides a quality electrical dual connection
  • Provides durable long lasting corrosion resistance
  • Provides easy cable insertion
  • Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
  • Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties
  • They are designed for heavy duty applications to 35 kV
  • Type YA-A aluminum tin plated compression HYLUG terminals are dual rated and designed for use on both aluminum and copper conductors from #12 solid through 2000 kcmil
  • Used for MY29-3, MRC840AL, Y81KFT, Y81KFTMBH, Y644HS, PAT81KFT-18V crimpers
  • Without inspection window
  • YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps
Standard
UL Listed, CSA Certified, ROHS Compatible
Sub_Brand
Burndy
Temperature_Rating
90
Type
2-Hole Non-Insulated
Voltage Rating
600 VAC to 35 kV
