Hubbell Hubbell HXJ5EOW


Description

Industry Description

Hubbell Premise Wiring Products, Telephone/Data, Jack, XCELERATOR, Cat5e, Office White

Modified Industry Description

OFFICE WHITE CAT5E MODULE JACK, 8 POSITION, 8 WIRE

AD Description

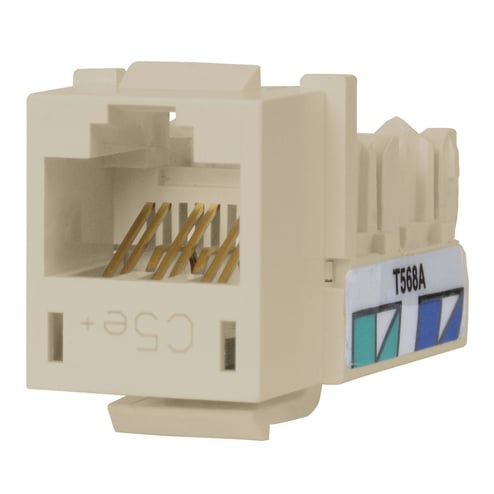

Wiring Device-Kellems XCELERATOR™ NEXTSPEED® SPEEDGAIN® HXJ5EOW 8-Position Standard Universal A/B Jack, Cat 5e Module, Keystone Mount, Off-White

Vendor Description

Hubbell category rated modular jacks provide leading edge performance and innovative designs to support today's Ethernet protocols, IP devices and high bandwidth audio video applications. These connectors install with a snap and provide quick, easy "screw-on" termination.

Specifications

Application
Telephone and Data Distribution Jack
Brand Name
Hubbell
Color
White
Connection
Insulation Displacement
Contact_Resistance
100 Ohm
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Mounting
Keystone
Size
0.86 (22) x 0.67 (?17) x 1.29 (?33)
Special Features

  • 100 Ohm contact resistance
  • 15 different colors aids identification of multiple applications
  • 2000+ mating cycles with FCC compliant 8-position plug
  • 3+Gbs of bandwidth
  • 8-positions and 4-contacts
  • Backwards compatible to Cat 5 and 3
  • Beryllium copper with precious metal plating with nickel under plating nose contacts
  • Center balanced to Cat 5e plug specifications
  • Compatible with standard 110 termination tools
  • Exceeds component requirements by a minimum of 3 dB
  • Exceeds IEEE 802.3af DTE power specification to 4X the standard
  • Exclusive 1-Punch termination tool and QuickLace combination
  • For use with Hubbell® series wallplates
  • High impact thermoplastic (UL94V-0) housing, lexan (UL94V-0) stuffer cap, polypropylene dust cover
  • IDC pair splitting tower allows for minimum disruption to cable twist
  • Labor savings exclusive 1-Punch termination reduces termination time by 75%
  • Mating cycles exceed industry standards by 2 times
  • Mating cycles exceed industry standards by two times
  • One punch termination reduces termination time by 75%
  • Phosphor bronze with 100 micro in tin plating over nickel under plating IDC contacts
  • Positive PSACR beyond 190 MHz
  • Small form factor allows more jacks in devices without restriction or constraint
  • Stuffer cap ensures secure strain relief and positive snap latching
  • Termination towers provide easy pair splitting, simple lacing and fast punch down
  • Two distinct labels eliminate wiring confusion, T568B/T568A
  • Universal Hubbell® keystone design fits into all Hubbell® iSTATION™ and delivery Plus products
  • Universal wiring two distinct labels eliminates wiring confusion, T568B or T568A
  • Withstands 1000 VAC RMS, 1414 VDC voltage
Standard
ANSI/TIA-568-C.2
Sub_Brand
Hubbell Premise Wiring
Temperature_Rating
Max Continuous- 75?° C, Minimum- -40?° C Without Impact
Type
Data Jack
Width_2
5.5000
Width_3
16.1250
Width_4
16.7000
Withstand_Voltage
1000V RMS, 1414V DC
