Siemens Siemens P2440L1125CU

Siemens P2440L1125CU

Kirby Risk #: 2452129

UPC: 04089264976, 040892649765, 00040892649765

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Siemens

Description

Modified Industry Description

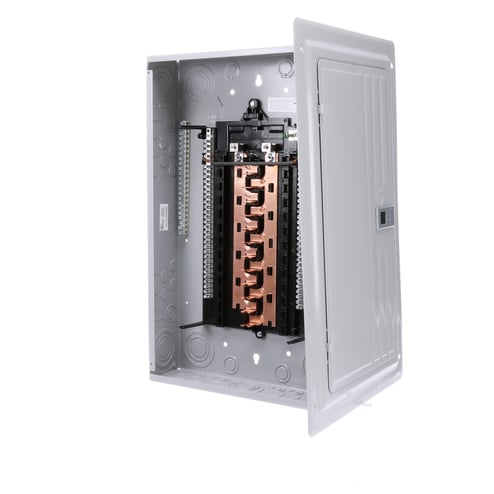

125A 240V ML 40C1PH INDOOR PANEL

AD Description

Siemens P2440L1125CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Amperage Rating	125
Brand Name	Siemens
Bus_Rating	125
Country of Origin	MX
Cover_Type	PL Series
Enclosure	Indoor Type 1
Interrupt_Rating	22
Load_Regulation	125A
Mounting	Combination
Number_Of_Spaces	24
Phase	1
Size	2426.5
Special Features	A rigid, sturdy base pan provides the ruggedness required for the most harsh applications All devices are provided with 2 factory installed ground bars All devices convertible from main lug to main breaker and vice versa Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility Combination mounting Copper busbar Dual neutrals on all configurations Indoor enclosure Invertible for bottom feed application MBK100A/MBK125A breaker Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field The visible neutral and grounds system aids in the insertion of conductors
Standard	N/A
Sub_Brand	Siemens
Type	1
Voltage Rating	120/240
Wiring_Configuration	3-Wire
