Panduit Pan-Net Panduit Pan-Net PUR6004BU-UY
Panduit Pan-Net PUR6004BU-UY
Kirby Risk #: 2451073
UPC: 07498305846, 074983058464, 50074983058469, 00074983058464
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit Pan-Net
Description
Industry Description

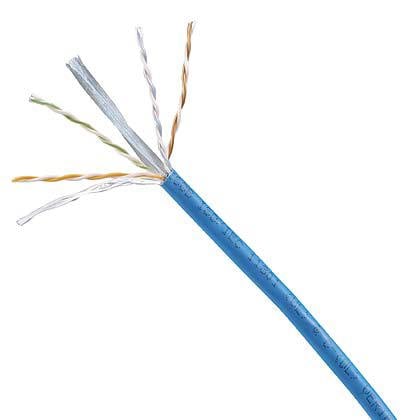

Copper cable, enhanced category 6 UTP, riser, 4-pair, conductors are 23 AWG construction with polyolefin (PE) insulation, twisted in pairs, separated by an integrated pair divider, and protected by a flame-retardant PVC jacket, blue.
Modified Industry Description
CATEGORY 6 BLUE RISER UTP WIRE COPPER CABLE
AD Description
Panduit® PUR6004BU-UY TX6000™ Enhanced Type CMR Cat 6 UTP Riser Cable, 80 VAC, (4 Pairs) 23 AWG Bare Copper Conductor, 1000 ft L
Specifications
| Application |
Indoor
|
|---|---|
| Brand Name |
Panduit Pan-Net
|
| Color |
Blue
|
| Conductor Material |
Copper
|
| Conductor Size |
23
|
| Construction |
CMR – Flame-retardant PVC
|
| Country of Origin |
USA
|
| Insulation_Material |
Polyolefin
|
| Jacket_Material |
PVC
|
| Number Of Conductors |
8
|
| Resistance |
Flame Retardant
|
| Special Features |
|
| Standard |
ANSI/TIA-568-C.2 Category 6, ISO 11801 Class E, Plenum — NFPA 262 and CSA FT-6, Riser — UL1666 and CSA FT-4 and Meets IEEE 802.3af and IEEE 802.3at for PoE applications
|
| Sub_Brand |
TX6000
|
| Temperature_Rating |
-4 to 167
|
| Type |
Type CMR Cat 6 UTP
|
| Voltage Rating |
80
|
| Width_2 |
13.0000
|
