Bussmann Bussmann CHCC1DI-48U

Name: Bussmann CHCC1DI-48U
Brand: Bussmann
SKU: 2449693
Price: 53.03 USD
Availability: InStock

Bussmann CHCC1DI-48U

Kirby Risk #: 2449693

UPC: 05171236281, 051712362818, 00051712362818

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

30AMP 48V MODULAR FUSE HLDR

Modified Industry Description

CC 1 POLE MODULAR FUSE HOLDER W/ LED , 30A 48V DC

AD Description

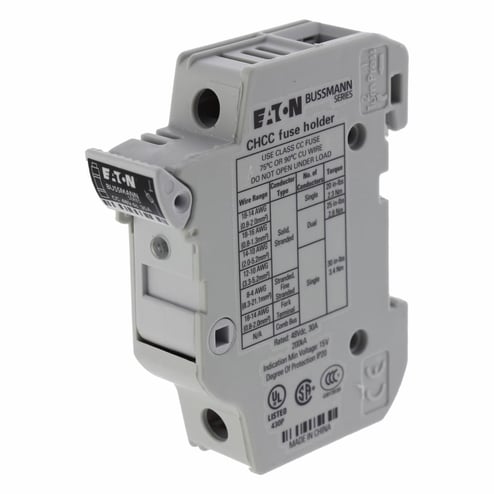

Bussmann CHCC1DI-48U Modular Fuse Holder With LED Indicator, 48 VDC, 30 A, Class CC, 18 to 4 AWG Wire, 1 Pole

Amperage Rating	30
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Class	CC
Country of Origin	MUL
Mounting	Din Rail
Operating_Temperature	-20 To 120 Deg C
Package_Quantity	1
Poles	1
Size	0.689 Width X 3.275 In Depth X 2.909 In Height
Special Features	Available remote PLC indication with the CH-PLC module Complete range of UL listed and high SCCR rated 1-phase and 3-phase finger safe comb bus bars and power feed lugs High SCCR rated, UL listed class CC holder with indicator option for 600 VAC/VDC and 48 VDC Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and comb bus bars, use any higher temperature rated wire with appropriate derating
Standard	UL, CSA, CCC
Sub_Brand	Cooper Bussmann
Type	Midget Fuse Holder
Voltage Rating	600
