Hubbell Hubbell SNAP1RNA
Hubbell SNAP1RNA
Kirby Risk #: 2445925
UPC: 78358525196, 783585251967, 00783585251967, 30783585251968
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

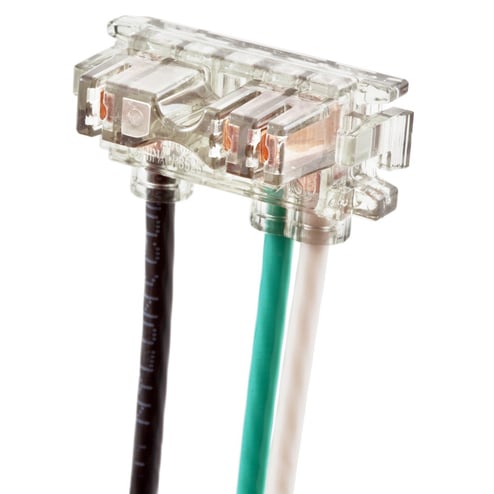

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Angled SNAPConnect Connector, Commercial Grade, 2-Pole 3-Wire Grounding,15/20A 125V, USA
Modified Industry Description
SNAPCONNECT 6IN SOLID WIRE CONN, RA
AD Description
Wiring Device-Kellems SNAPConnect® SNAP1RNA SNAPConnect® Grounding Quick-Connection Standard Pigtailed Terminal, 12 AWG Solid Wire, Brass/Polybutylene Terephthalate
Specifications
| Amperage Rating |
15/20
|
|---|---|
| Application |
Quick Connection
|
| Brand Name |
Hubbell
|
| Color |
Colorless
|
| Conductor Range |
Pre-Wired #12 THHN
|
| Connection |
Screw Terminals
|
| Country of Origin |
MX
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
3-Wire Grounding
|
| Number_Of_Poles |
2
|
| Size |
Standard
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL498
|
| Sub_Brand |
Straight Blade
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
SNAPConnect Connector
|
| Voltage Rating |
125
|
