Bussmann Bussmann CHM3DIU

Name: Bussmann CHM3DIU
Brand: Bussmann
SKU: 2442682
Price: 194.99 USD
Availability: InStock

Bussmann CHM3DIU

Kirby Risk #: 2442682

UPC: 05171236278, 051712362788, 00051712362788

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

30AMP 600V MODULAR FUSE HLDR

Modified Industry Description

30A 600V - MODULAR FUSE HOLDER

AD Description

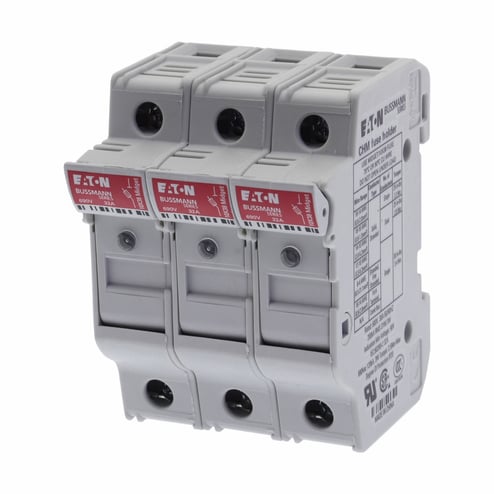

Bussmann CHM3DIU Modular Fuse Holder With Indicator, 600/690 VAC, 30/32 A, Class Midget, 18 to 4 AWG Wire, 3 Poles

Amperage Rating	30/32
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Country of Origin	CN
Operating_Temperature	-20 To 90 Deg C
Package_Quantity	1
Size	2.067 In Width X 3.275 In Depth X 2.909 In Height
Special Features	30 A, 600 VAC UL and 32 A, 690 VAC IEC rated Available remote PLC indication with the CH-PLC module Complete range of UL Listed and high SCCR rated 1 and 3-phase finger safe comb-bus bars and power feed lugs Complete range of UL listed and high SCCR rated 1-phase and 3-phase finger safe comb bus bars and power feed lugs Enhanced safety with IP20 finger safe construction UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option Wiring flexibility with terminals rated for use with 75 or 90 deg C solid, stranded and fine stranded wire and spade terminals and comb-bus bars
Standard	CSA, IEC 60269-2, CCC, UR
Sub_Brand	Cooper Bussmann
Type	Modular
Voltage Rating	600/690
