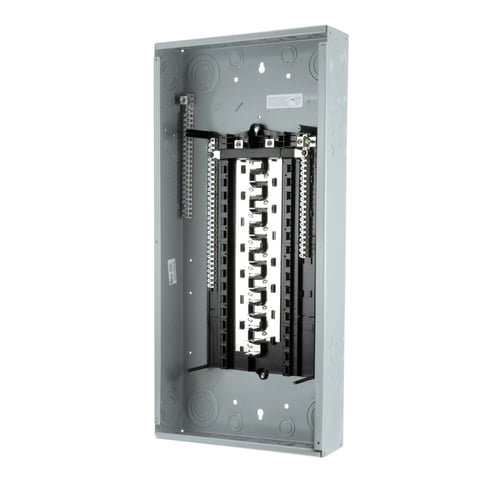

Siemens Siemens S3040L1125G


Description

Industry Description

SIEMENS LOW VOLTAGE ES SERIES LOAD CENTER. MAIN LUG WITH 30 1-INCHSPACES ALLOWING MAX 40 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V(125A) 100KA INTERRUPT. SPECIAL FEATURES ALUMINUM BUS, FACTORYINSTALLED GROUND BAR, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.. REPLACED BY SN3048L1125. AVAILABLE 4/1/2020

Modified Industry Description

1PH LC 30S 40C ML 125A AL INDOOR GB

AD Description

Siemens S3040L1125G ES Series Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 22 kA Interrupt

Vendor Description

The ES series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
125
Application
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Country of Origin
MX
Enclosure
TYPE1
Frequency_Rating
N/A
Interrupt_Rating
22
Mounting
Flush/Surface
Phase
1
Series
ES Series
Size
2738.4375
Special Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices convertible from main lug to main breaker and vice versa
  • Aluminum busbar
  • Backfeed QP, field installed breaker
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Combination mounting
  • Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
  • Indoor enclosure
  • Invertible for bottom feed application
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors
Standard
N/A
Sub_Brand
UL
Type
ESSERIESASSEMBLEDLOADCENTER
Voltage Rating
120/240
Wattage
N/A
