Allen-Bradley Allen-Bradley MPL-B420P-MK74AA
Allen-Bradley MPL-B420P-MK74AA
Kirby Risk #: 2436884
UPC: 82091998078, 820919980787, 00820919980787
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

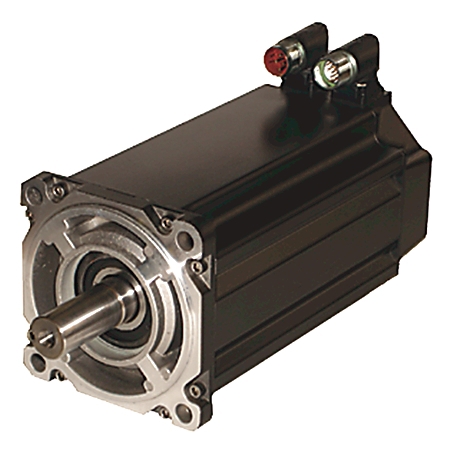

Servo Motor,Rotary,Low Inertia,IEC,480V AC,1024 Sin/Cos,5000 rpm Maximum,4.74 N-M,1/4 Turn Right Angle Rotatable DIN Connector,Hiperface Multi-Turn Absolute Encoder Feedback,24V DC Brake,115 mm Bolt Circle Metric Flange Mounting,Keyless Shaft,Standard
Modified Industry Description
115MM MPL SERVO MOTOR 5000 RPM 460V
Specifications
| Armature_Voltage |
460
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Connectors |
peedTEC DIN Connector, RightAngle, 180° Rotatable (QuickConnect)
|
| Country of Origin |
MUL
|
| Enclosure |
Keyless Shaft Extension
|
| Frame |
4 = 115 mm (4.53 in.)
|
| Mounting |
IEC Metric, Free Mounting Holes (Type FF)
|
| Special Features |
low inertia
|
| Speed_Rating |
5000 RPM
|
| Standard |
KC
|
| Sub_Brand |
Allen-Bradley
|
| Type |
Servo Motor
|
