O-Z/Gedney O-Z/Gedney T100ACG


Description

Industry Description

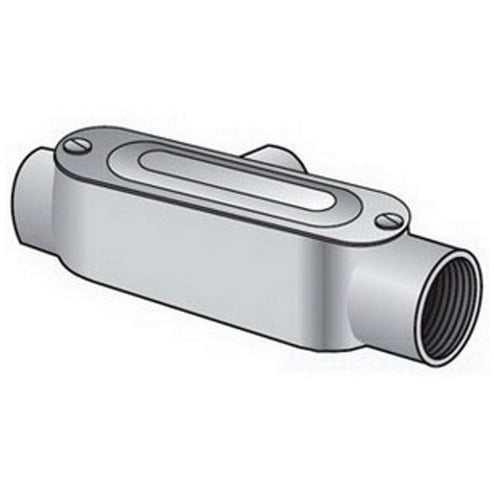

OZ-Gedney Type T Conduit Body, Cover And Gasket Assembly, 1 IN Hub, Length: 6-3/4 IN, 2 IN Height, Conduit Body: Die-Cast, Copper-Free Aluminum, Cover: Type BS Aluminum, Gasket: Type SGN Neoprene, Finish: Aluminum Enamel, Connection: Tapered FNPT, 3 (4 AWG) Conductors, 12 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC

Modified Industry Description

1 IN BODY/CVR/GSKT ASSY TYPE C

AD Description

O-Z/Gedney T100ACG Type T Conduit Outlet Body With Cover and Gasket, 1 in Hub, 12 cu-in, Die Cast Copper Free Aluminum, Epoxy Powder Coated/Aluminum Enamel

Vendor Description

O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Specifications

Application
For Rigid Conduit And IMC
Connection
Tapered FNPT
Country of Origin
IN
Dimensions
6-3/4 in L x 2 in H
Enclosure
NEMA FB-1/FB-2.10
Finish
Epoxy Powder Coated/Aluminum Enamel
Length1
8.5000
Material
Die Cast Copper Free Aluminum
Special Features

  • Internal volume and maximum wire capacity clearly marked on castings
  • Raintight when used with gasketed covers
  • Suitable for wet locations when used with gasketed covers
  • Tapered threaded hubs (NPT)
Standard
Third Party Certification: UL File Number E-18095, CSA LR-9795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563; NEMA : FB-1, FB-2.10
Sub_Brand
O-Z/Gedney
Type
Type T
