3M 3M MH18BCK


Description

Industry Description

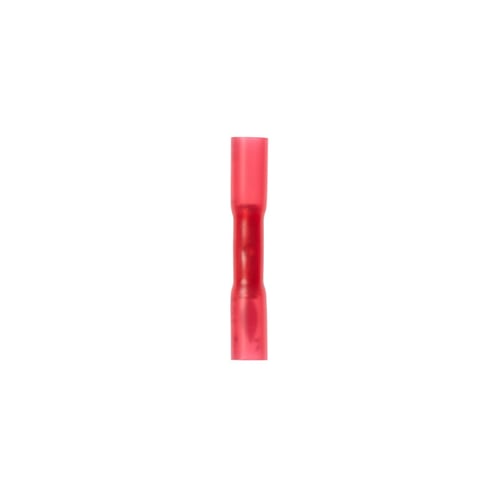

3M™ Scotchlok™ Color-Coded Heat Shrink Butt Connector ensures an ideal fit with great performance. The seamless barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

SEAMLESS BUTT HEAT SHRINK CONNECTOR

AD Description

3M™ Scotchlok™ 054007-06343 Standard Heat Shrink Butt Connector, 22 to 18 AWG Conductor, 1.2 in L, Seamless Barrel, Red

Vendor Description

3M™ Scotchlok™ Heat Shrink Butt Connector is colour coded for quick and easy identification of the wire size required. This versatile connector has a seamless barrel that is covered by see through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk.

Specifications

Color
Red
Conductor Type
Copper
Conductor Size
22 to 18
Country of Origin
US
Dimensions
0.031 in THK
Finish
Tin Plated
Length1
1.2
Material
Heat Shrink
Special Features

  • Built in wire stop for correct positioning
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Seamless barrel uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive lined polyolefin offers seal resistance to water and salt
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
105
Type
Standard
