3M 3M MH14BCK


Description

Industry Description

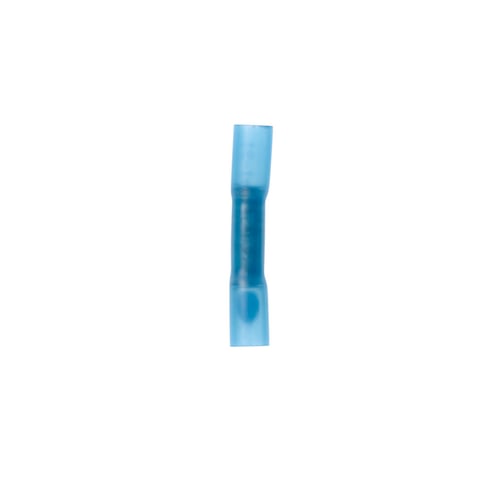

3M™ Scotchlok™ Color-Coded Heat Shrink Butt Connector ensures an ideal fit with great performance. The seamless barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

SEAMLESS BUTT HEAT SHRINK CONNECTOR

AD Description

Scotchlok™ 054007-06319 Standard Butt Connector, 16 to 14 AWG Conductor, 1.3 in L, Seamless Barrel, Copper, Blue

Vendor Description

Choose this adaptable 3M™ Scotchlok™ Heat Shrink Butt Connector and easily note the wire size required via the handy blue color-coding. It has a seamless, transparent barrel that’s easy to work with, saving you time and headache during installations. When shrunk down and properly crimped, this tubing provides excellent strain relief and pullout strength. It is also pre-insulated and provides great resistance to salt, water and various other contaminants. It is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Specifications

Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
US
Length1
1.3 in
Material
Copper
Special Features

  • 0.031 in thickness
  • Crimp connection
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning
Standard
UL and CSA
Sub_Brand
3M
Type
Standard
Voltage Rating
600 VAC
