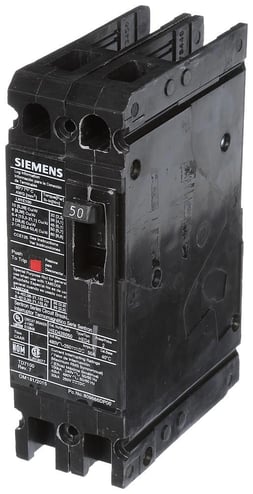

Siemens Siemens HED42B050
Siemens HED42B050
Kirby Risk #: 2430164
UPC: 78364321001, 783643210011, 00783643210011, 70783643210010
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH HIGH BREAKING CAPACITY. 50A 2-POLE (42KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 2.00x 6.4 x 3.92.
Modified Industry Description
BREAKER ED 2P 50A 480V 42KA LD LUG
AD Description
Siemens Sentron™ HED42B050 Type HED4 Low Voltage Molded Case Circuit Breaker, 480 VAC/250 VDC, 50 A, 42 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
50
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
HED4/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
42
|
| Material |
N/A
|
| Number_Of_Poles |
2
|
| Operating_Temperature |
40C
|
| Phase |
1
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
N/A
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
480 VAC/250 VDC
|
| Width_2 |
6.0000
|
| Width_3 |
40.0000
|
