Panduit Panduit NNC50X75LG2


Description

Industry Description

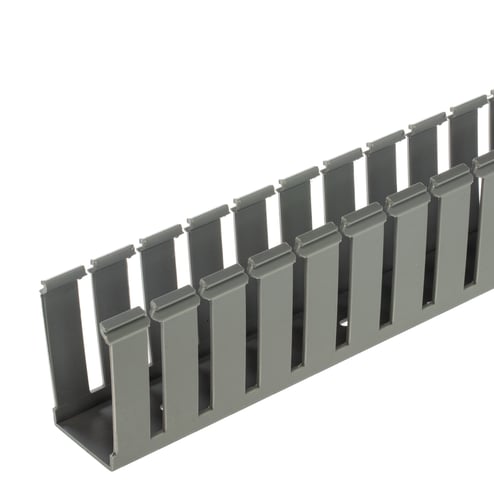

Panduct® type NNC halogen-free metric wiring duct, 50mm W x 75mm H x 2M length, halogen-free, light gray.

Modified Industry Description

SLOTTED DUCT, HALOGEN FREE,50MM X

AD Description

Panduit® Panduct® NNC50X75LG2 Type NNC Halogen-Free Slotted Wall Wiring Duct, 0.39 in Wide Slot, 50 mm W, Halogen-Free PPO

Vendor Description

Panduct® type NNC wiring duct is made from halogen-free material that will not emit corrosive or harmful toxic gases when burned and withstands higher continuous use temperatures than PVC. NNC wiring duct is used to route, protect and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern.

Specifications

Application
NNC Wiring Duct is Used to Route, Protect, and Manage Wires near Sensitive Electronic Equipment and in Environments where Heat Resistance or Public Safety is a Concern
Color
Light Gray
Connection
DIN Mounting Holes
Country of Origin
USA
Length1
6.6
Material
Halogen-Free Polyphenylene Oxide
Mounting_Type
Surface
Size
1.95 X 2.85
Special Features

  • Base and finger scorelines
  • Duct and cover packaged together in two meter lengths
  • High continuous use temperature
  • Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
  • Metric sizing and finger progression
  • Provided with DIN 43 659 mounting holes
  • The base sidewall is even with cover for superior aesthetics and greater wiring capacity when compared to non-flush cover wiring duct
  • Upper and lower scorelines allows easy finger and sidewall section removals
Standard
RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
Sub_Brand
Panduct?®
Type
Type NNC Halogen Free Wide
