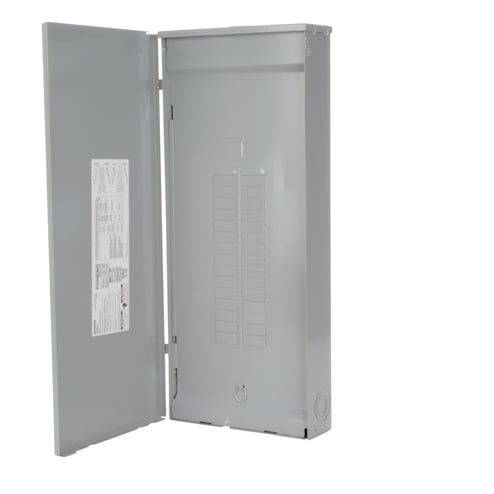

Siemens Siemens PW3040L1200CU


Description

Industry Description

SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 30 1-INCHSPACES ALLOWING MAX 40 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V(200A) 100KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLEMAIN, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.. REPLACED BY PNW3048L1200C. AVAILABLE 4/1/2020

Modified Industry Description

1PH LC 30S 40C ML 200A CU OUTDOOR

AD Description

Siemens PW3040L1200CU PL Series Single Phase Main Lug Load Center, 120/240 VAC, 200 A, 22 kA Interrupt

Vendor Description

The PL series load center product line provides a wide array of variation to meet any application need.

Specifications

Amperage Rating
200
Brand Name
Siemens
Bus_Rating
200
Cable_Size
N/A
Country of Origin
MX
Cover_Type
PL Series
Enclosure
Outdoor Type 3R
Frequency_Rating
N/A
Interrupt_Rating
22
Load_Regulation
200A
Mounting
Surface
Number_Of_Spaces
30
Phase
1
Size
2838.4375
Special_Features

  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • All devices are provided with 2 factory installed ground bars
  • All devices convertible from main lug to main breaker and vice versa
  • Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
  • Copper busbar
  • Dual neutrals on all configurations
  • Invertible for bottom feed application
  • MBK150A/MBK200A breaker
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outdoor enclosure
  • The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
  • The visible neutral and grounds system aids in the insertion of conductors

Standard
N/A
Sub_Brand
Siemens
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage Rating
120/240
Wattage
N/A
Width_2
40.0000
Wiring_Configuration
3-Wire
