Sensor Switch Sensor Switch CMB 6

Industry Description

Fixture mount, low voltage, High Mount 360deg, SKU - 184EVE

Modified Industry Description

High Bay 360 DEGREE sensor

AD Description

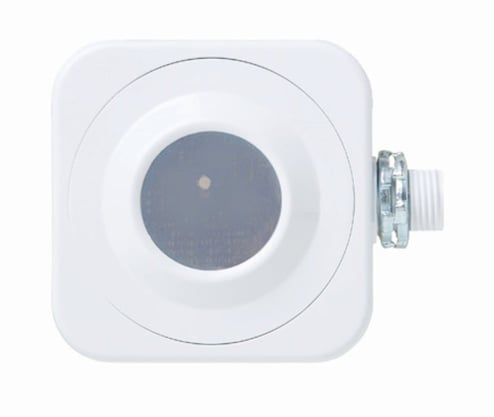

Sensor Switch™ Sensor Switch® CMB 6 Low Voltage High Mounting Box Sensor, 12 to 24 VAC/VDC, PIR Sensor, 360 deg Coverage, Fixture Mount

Vendor Description

Designed for mounting heights of up to 45 ft, the CMRB 6 High Bay 360-176, sensor provides Passive Infrared (PIR) occupancy detection over a 15 to 20 ft radial coverage pattern that overlaps the areas lit by a typical high bay fixture. This line voltage Sensor Switches loads directly without the need for a power pack. The CMRB 6 sensor mounts directly to the end of a lighting fixture through an extended 1/2 inch chase nipple and is ideal for individual on/off control of T5/T8 fluorescent lighting. HID bi-level fixtures can also be controlled when the start to high (SH) option is added to the CMRB 6. For multiple fixture control, multiple low voltage CMB 6, CMB 50 and/or HMB 10 series High Bay sensors with power packs are recommended. For lower mounting height applications, CMRB 9 or CMRB 10 series sensors are recommended.
