General Cable General Cable E3034S.41.86


Description

Industry Description

Multi-Conductor, Unshielded, Plenum NEC Type CMP and/or CL3P, 4C/18 7/26BC CL3P/CMP/FPLP, 1000' Spool, Natural

Modified Industry Description

4C/18 7/26BC UNSH TYPE CMP

AD Description

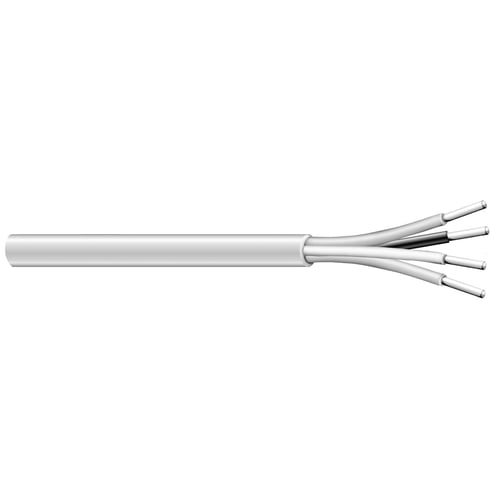

General Cable® Carol® E3034S.41.86 Type CMP/CL3P/FPLP Unshielded Multi-Conductor Cable, 300 VAC, (4) 18 AWG Stranded Bare Copper Conductor, 1000 ft Reel L

Vendor Description

General cable Carol® brand is the right solution for alarm and security wire and cable. Carol® offers as broad an offering as anyone in the industry. There are seven basic areas where alarm and security cables are used. General cable has the right product to serve every application, including access control, video surveillance/CCTV, component video, lighting control and touch panel systems, fire alarm and life safety, home theater and burglar alarms. Our alarm and security cables offer solutions in all major security applications markets, including commercial buildings, residential housing, business and Office campus environments, public stadiums and arenas, airport, train, bus and other transportation hubs and schools, colleges and universities. Whatever the security application need calls for, general cable has a cable that delivers the performance you need.

Specifications

Application
PowerLimited control circuits Wiring of the following systems: Intercom Security Audio Background music Suggested voltage rating: 300 volts
Brand Name
General Cable
Color
Ivory
Conductor Material
Copper
Conductor Size
18
Country of Origin
USA
Insulation_Material
Flexguard® PVC
Jacket_Material
Flexguard® PVC
Number Of Conductors
4
Special Features

  • 0.007 in THK nominal insulation
  • 0.015 in THK nominal jacket
  • Communication cable plenum (CMP) NEC article 800 cable designation, class 3 circuit plenum cable(CL3P) NEC article 725 cable designation, power limited fire protective signaling circuit plenum cable (FPLP) NEC article 760 cable designation
  • Designed to meet NFPA 262 flame test
  • Premium grade, color coded Flexguard® PVC insulation
  • Premium grade, natural Flexguard® PVC jacket
  • Sequential footage marked to facilitate installation
  • Solid or stranded bare copper per ASTM B-3, B-8 and B-286
  • Suitable for use in the state of California
Sub_Brand
General Cable
Temperature_Rating
0 to 75
Type
Type CMP/CL3P/FPLP Unshielded
Voltage Rating
300
Width_2
11.7500
