ERICO Erico TDX50C120/208

Name: Erico TDX50C120/208
Brand: ERICO
SKU: 2415896
Price: 1110.74 USD
Availability: InStock

ERICO TDX50C120/208

Kirby Risk #: 2415896

UPC: 78285659313, 782856593133, 00782856593133

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: ERICO

Description

Industry Description

Compact TDX Panel Protector, 50 kA, 120/208 V Un

Modified Industry Description

PROTECTOR,SURGE,TDX50C,3P,120/208V,

AD Description

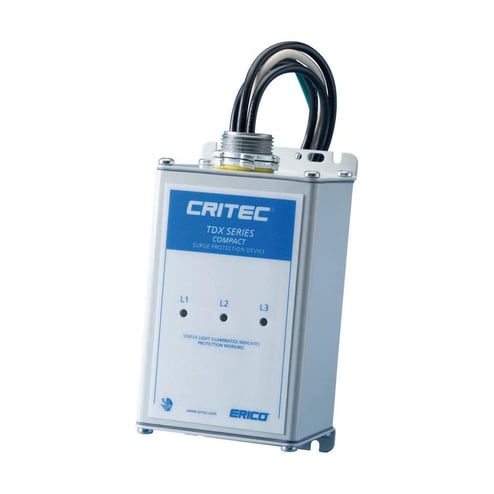

ERICO® TDX50C120/208 Compact TDX Panel Protector With Remote Contacts, 120/208 VAC, 50/60 Hz, 50 kA SCCR, 3 ph Phase

Application	Facility Electrical Protection; Lightning Protection; Panel; Rail; Solar Power; Telecom; Utility; Wind Power
Class	Class I/II
Country of Origin	CN
Dimensions	6.02 in H x 3.31 in W x 3.07 in D
Environmental_Conditions	-40 to 176 deg F Temperature
Frequency_Rating	50/60
Length1	12.2000
Material	Metal
Mounting	3/4???‚¬? straight nipple
Mounting_Type	3/4 in Straight Nipple
Phase	3
Special Features	Built-in features include TD technology, thermal protection and short circuit current fusing Compact NEMA 4 enclosure design can be flush mounted or installed in a small space Modular design allows easy replacement of surge modules Status indication flag per mode, voltage presence LEDs, audible alarm and voltage free contacts providing remote status monitoring Transient discriminating (TD) technology provides increased service life
Standard	C-Tick, CE, UL
Sub_Brand	ERICO
Type	Compact TDX
