Hubbell Hubbell IG20CR
Hubbell IG20CR
Kirby Risk #: 2413357
UPC: 78358514762, 783585147628, 00783585147628
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Commercial Grade, Corrosion Resistant, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Back and Side Wired, Orange
Modified Industry Description
COMM 20A SIDE WIRED IG DUPLEX OR
AD Description

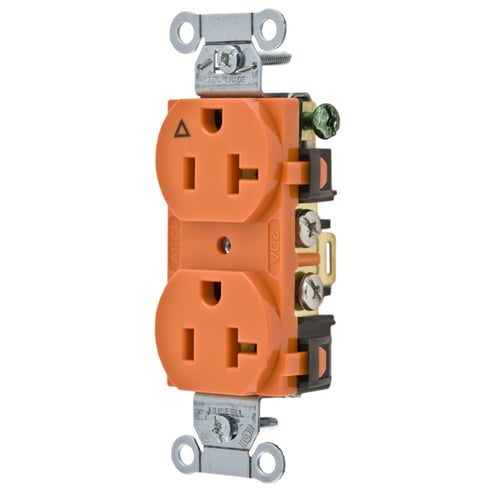

Wiring Device-Kellems Style Line® IG20CR Corrosion-Resistant Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Commercial Specification Grade
|
| Color |
Orange
|
| Connection |
Back and Side Wired Screw Terminals
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Length1 |
4.2000
|
| Material |
Thermoplastic
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2
|
| Phase |
1
|
| Series |
Commercial Specification Grade
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Traditional Duplex
|
| Voltage Rating |
125
|
| Wattage |
2,500
|
