Appleton Appleton APP870FIG


Description

Industry Description

FM7 UNILETS Form-IN-Place Clip Cover With Integral Gasket, Hub Size: 2-1/2 - 3 IN, Form: 7, Mounting: Screw-In, Material: Cast Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Enclosure

Modified Industry Description

2-1/2&3 FM7 COVER & FIP GASKET

AD Description

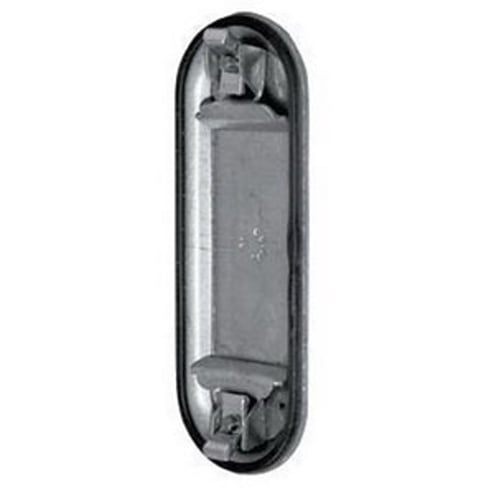

Appleton® UNILETS™ APP870FIG Form-IN-Place Conduit Body Cover With Integral Gasket, 2-1/2 to 3 in Hub, For Use With FM7™ Unilet® Conduit Outlet Body, Cast Grayloy Iron, Triple Coated

Vendor Description

Eliminate the need to install, order or stock separate conduit body gaskets and covers with Appleton's new Form-IN-Place covers. Form-IN-Place covers feature an integral gasket that takes the place of traditional removable gaskets. The cover with integral gasket reduces parts to stock and simplifi es cover installations by putting an end to time-consuming aligning, assembling and installing gaskets. Every Form-IN-Place cover comes ready to install right from the factory, with no additional assembly required.

Specifications

Application
For FM7 Unilet Conduit Outlet Bodies
Color
Gray
Country of Origin
US
Enclosure
NEMA 3R
Finish
Triple Coated
Length1
10.4000
Material
Cast Grayloy Iron
Mounting
Screw-In
Special Features

  • 9.7 cu-in as per NEC 314.16(A) wiring capacity
  • Benefit from superior sealing, reduced inventory parts and faster installation times
  • Captive pan-head screws
  • High-strength, corrosion and weather resistant
  • Wedge-Lok™ clips (FM7 only) provide superior screwdriver torque and cover seating
Standard
UL File Number E2527, CSA 65183, Class 4413-02, Class I, Division 2, NEMA FB-1
Sub_Brand
Appleton
Type
Form-IN-Place
