Crouse-Hinds Crouse-Hinds LR350M


Description

Industry Description

3 1/2 FORM 5 LR CONDUIT BODY MALLEABLE

Modified Industry Description

3 1/2 FORM 5 LR COND BODY MALLEABLE

AD Description

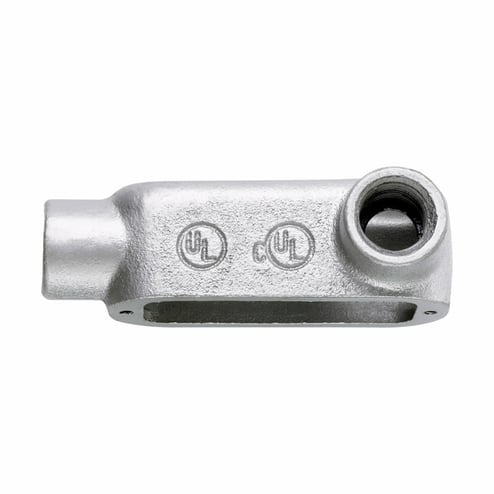

Crouse-Hinds Condulet® LR350M Type LR Conduit Outlet Body, 3-1/2 in Hub, 5, 292 cu-in, Malleable Iron, Hot Dipped Galvanized

Vendor Description

Hot dip galvanizing is a form of galvanization. It is the technology of coating by passing the product through a molten bath of zinc at high temperature. The process of hot dip galvanizing results in a metallurgical bond between zinc and steel with a series of distinct iron zinc alloys. The hot dip zinc coating produces a much thicker, durable coating which prevents corrosion of the protected product by forming a physical barrier and by acting as a sacrificial anode if this barrier is damaged.

Specifications

Application
Rigid/IMC Conduit
Class
3
Country of Origin
IN
Dimensions
6.25 in L x 6.1 in W x 5.62 in H
Enclosure
NEMA 4
Finish
Hot Dipped Galvanized
Length1
7.6000
Material
Malleable Iron
Special Features

  • (3) 350 kcmil XHHW conductors
  • Act as mounting outlets for lighting fixtures and wiring devices
  • Act as pull outlets for conductors being installed
  • Built-in rollers ON 1-1/4 to 4 in C and lb bodies to facilitate wire pulling
  • Domed sheet steel covers provide additional cubic capacity
  • Integral gasket cover provides NEMA 4-rating
  • Integral gasket ON cover or neoprene with perforation
  • Interchangeable with Appleton® form 35 conduit bodies
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs
  • Sheet steel with or without integral gasket
  • Smooth and rounded integral bushings for protection of wire insulation
  • Solid neoprene gaskets may be converted to open type by pulling out perforated center section
  • Stainless steel cover screws
Standard
UL 514B, CSA C22.2, CUL
Sub_Brand
Eaton Crouse-Hinds
Type
Type LR
