NSI NSi 8-350T4
NSI 8-350T4
Kirby Risk #: 2409407
UPC: 66238102694, 662381026941, 00662381026941
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

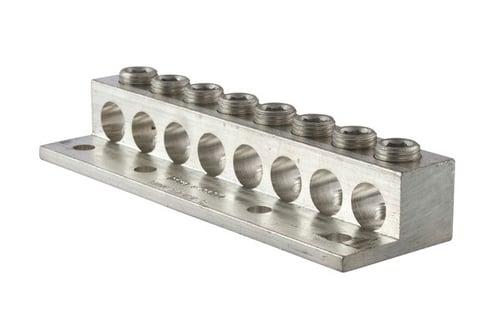

8 Port 4 Mounting Hole Aluminum Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C.
Modified Industry Description
DUAL RATED TRANSFORMER LUGS 350 MCM
AD Description
NSI 8-350T4 Dual Rated Transformer Lug, 6 AWG to 350 kcmil, 3/8 in Stud, 4 Bolt Holes, Aluminum Alloy
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Conductor Size |
6 AWG to 350 kcmil
|
| Country of Origin |
USA
|
| Dimensions |
2.25 in L x 5.56 in W x 1.25 in H
|
| Environmental_Conditions |
90 C
|
| Finish |
Electro-Tin Plated
|
| Length1 |
2.2500
|
| Material |
Aluminum Alloy
|
| Number Of Conductors |
8
|
| Number_Of_Poles |
1
|
| Series |
T Series
|
| Special Features |
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
