NSI NSi TS750-4
NSI TS750-4
Kirby Risk #: 2404722
UPC: 66238102378, 662381023780, 00662381023780
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

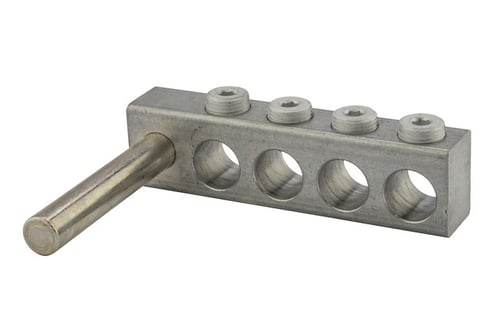

4 Port Aluminum Dual Rated Transformer Stud Connector 750 - 250 MCM Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
Modified Industry Description
WIRE RANGE 750-250, 4 CONDUCTORS
Specifications
| Application |
Wire Termination
|
|---|---|
| Color |
Silver
|
| Country of Origin |
USA
|
| Environmental_Conditions |
90 C
|
| Finish |
Aluminum
|
| Length1 |
6.7200
|
| Material |
Aluminum Alloy
|
| Number Of Conductors |
4
|
| Number_Of_Poles |
1
|
| Special Features |
4 Conductor - 3/4 Stud Diameter - 5 1/2 Inch Stud Length
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Transformer Stud Connector
|
| Voltage Rating |
600
|
