3M 3M MN14BCX-A


Description

Industry Description

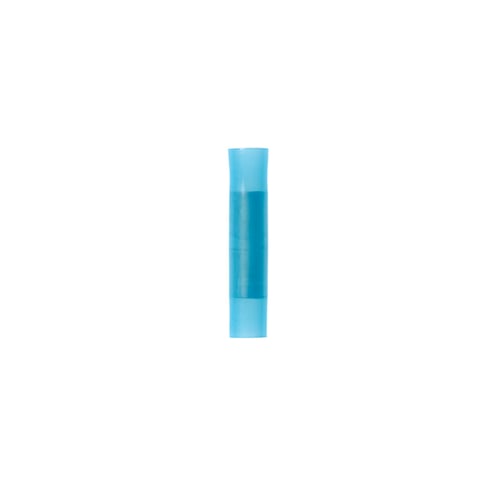

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a nylon-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

BUTT CONNECTOR SEAMLESS NYLON

AD Description

Scotchlok™ 051128-59000 Standard Butt Connector, 16 to 14 AWG Conductor, 1.02 in L, Seamless Barrel, Copper, Blue

Specifications

Color
Blue
Conductor Size
16 to 14 AWG
Country of Origin
TW
Dimensions
0.155 in OD
Length1
1.02 in
Material
Copper
Special Features

  • 0.031 in thickness
  • Crimp connection, nylon insulation
  • Must be crimped at both ends
  • Uses chamfered barrel ends to provide fast, easy wire insertion from both ends and a built-in wire stop for correct positioning

Standard
UL and CSA
Sub_Brand
3M
Type
Standard
Voltage Rating
600 VAC
