Burndy Burndy YAV26L


Description

Industry Description

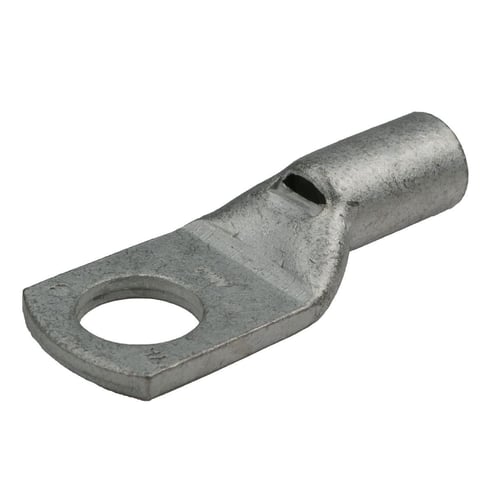

Copper Compression Lug, 1 Hole w/ Inspection Window, AN-2/0 Flex, 3/8" Stud, Short Barrel, Tin Plated.

Modified Industry Description

2/0 AWG COPPER COMPRESSION LUG , 1 HOLE W/ INSPECTION WINDOW , 3/8 IN STUD , SHORT BARREL

AD Description

BURNDY® HYLUG YAV26L YAV-L 1-Hole Heavy Duty Non-Insulated Compression Lug With Inspection Window, 2/0 AWG Stranded Copper Conductor, Die Code: 44, 3/8 in Stud, Electrolytic Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
Brand Name
Burndy
Cable_Size
2/0 AWG Flex
Conductor Material
Copper
Conductor Size
2/0
Country of Origin
US
Insulation
Uninsulated
Material
Electrolytic Copper
Number_Of_Holes
1
Package_Quantity
1
Special Features

  • 11.85 in hole center to barrel end, 0.48 in hole center to barrel
  • AN 00 flex aircraft cable size, 2/0 AWG stranded conductor
  • Bulk packaging
  • Electro tin plated
  • For HYtool MY28, MY29-11 non-ratchet, HYPRESS Y29NC, Y29B, DV26L die nest, Y29PR die indentor, (1) crimp, Y35, Y39, UV26L die nest, Y35P3 die indentor, (1) crimp, Y750, UV26L die nest, Y34PA die indentor, (1) crimp installation tools
  • The benefits of YAV-L connectors are the same as YAV connectors for stranded conductors
  • The seamless tubing produces a double thick tongue and seamless barrel design provides a strong connector for demanding applications requiring high reliability
  • Uninsulated compression terminal manufactured from electrolytic copper and is for use on type AN aircraft cable, extra flexible conductors and commercial (code) conductors
  • Used for other equipment that is subject to vibration or requiring dependable electrical performance
Standard
UL Listed, CSA Certified
Stud_Size
3/8
Sub_Brand
Burndy
Type
1-Hole Heavy Duty Non-Insulated
Voltage Rating
600
