Panduit Panduit TM3S2510-C39
Panduit TM3S2510-C39
Kirby Risk #: 2389375
UPC: 07498301450, 074983014507, 30074983014508, 00074983014507
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

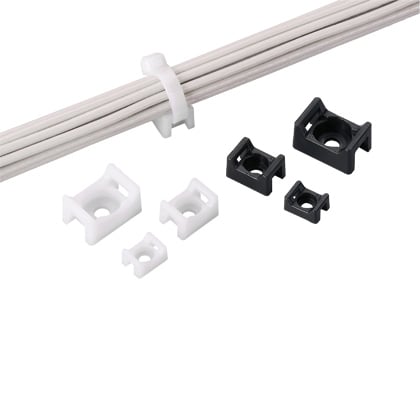

The cable tie mount in natural color is applied with a #10 (M5) screw and is .61" (15.5mm) wide. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
Modified Industry Description
Cable Tie Mount, .62IN (15.8mm)W,
AD Description
Panduit® TM3S2510-C39 Cable Tie Mount, Threaded Mount, 0.3 in W Tie, Nylon, Natural
Specifications
| Application |
Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
|
|---|---|
| Brand Name |
Panduit
|
| Cable_Size |
NA
|
| Cable_Type |
Cable Tie Mount
|
| Color |
Natural
|
| Country of Origin |
USA
|
| Insulation |
Other
|
| Material |
Nylon
|
| Mount_Size |
0.87
|
| Operating_Temperature |
-76°F - 239°F (-60°C - 115°C)
|
| Package_Quantity |
100
|
| Screw_Holes |
#10 (M5)
|
| Special Features |
|
| Standard |
cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Screw Applied
|
