Ideal Ideal WT41-SK


Description

Industry Description

Buchanan, Wire Connector, WingTwist, Conductor Range: 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX, Number Of Conductors: 1 to 6, Material: Flame-retardant Polypropelene, Color: Tan, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: WT41

Modified Industry Description

WINGTWIST WT41 (25000 DRUM)

AD Description

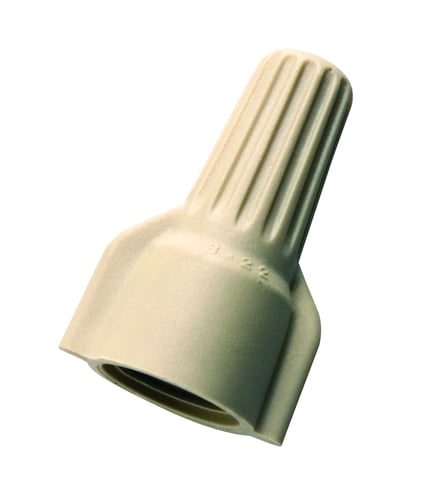

BUCHANAN WINGTWIST™ WT41-SK Wire Connector, Contoured Winged/Twist On Shell, Fixed/Square Wire Spring, 22 to 10 AWG Solid Wire, Polypropylene

Vendor Description

WINGTWIST™ provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. The Combination WIRETWIST™/WINGTWIST™ Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WIRETWIST™ and WINGTWIST™ Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.

Specifications

Application
Insulating or Joining 1 or more conductors
Color
Tan
Country of Origin
USA
Dimensions
0.54 in Dia x 1.13 in H x 0.73 in W
Environmental_Conditions
Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F)
Length1
31.2500
Material
Polypropylene
Number Of Conductors
1 to 6
Series
WT41
Special Features

  • Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection
  • Expanding, square wire spring creates secure connections
  • Fixed, square wire spring threads itself creating a secure pressure grip
  • Flexible shell expands for smooth, progressive tightening providing dependable connections
  • No pre twisting required
  • Unique contoured wing design acts as built-in wrench providing maximum torque with minimum effort
Standard
CSA C22.2 #188, UL 486C Listed, RoHS
Sub_Brand
Buchanan
Temperature_Rating
221
Voltage Rating
600
