Thomas & Betts Thomas & Betts BLB-3


Description

Industry Description

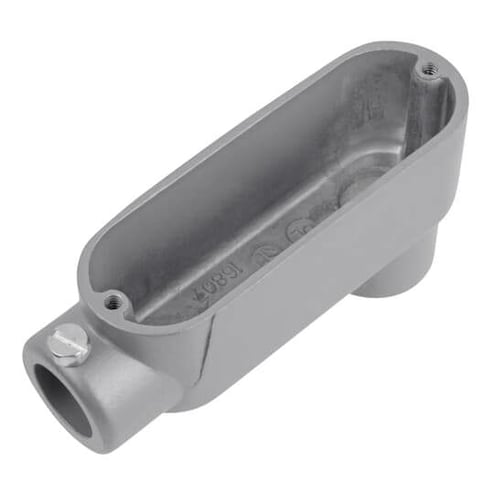

1 inch Set Screw Die Cast Aluminum Conduit Body with Back-Opening. For Use with EMT Conduit.

Modified Industry Description

1 INCH EMT LB CONDUIT BODY

AD Description

Red Dot® BLB-3 B Series Type LB Conduit Body, 1 in Hub, 11.8 cu-in Capacity, Die Cast Aluminum

Vendor Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Specifications

Application
For use with EMT conduit
Country of Origin
IN
Dimensions
5-3/8 in L x 5-15/16 in W x 1-3/4 in H
Length1
8.7800
Material
Die Cast Aluminum
Series
B Series
Special Features

  • 90 deg hub location
  • Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
  • Back access opening
  • Clean cover edges provide good gasket sealing
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Copper-free aluminum provides increased corrosion-resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Precision NPT threaded and set screw hubs allow trouble-free field installation
  • Provide access for pulling, splicing and maintenance
  • Retained deep slotted stainless steel cover screws for faster installation
  • Retained stainless steel cover screws
  • Smooth throats for easy wire pulling
  • Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
Standard
E 28688
Sub_Brand
Red Dot
Type
Type LB
