Siemens Siemens LW2040B1200


Description

Industry Description

Siemens Low Voltage Residential Specialty Load Centers Murray LoadCenters 2442.44 for residential applications. Meets stds UL. Rat ed120/240V (200A).Overload, short circuit protection by integrated circuitbreaker. (AIR 22000AIC). Outdoor Type 3R enclosure with surfacemounting. Special features ul. REPLACED BY SNW2040B1200. AVAILABLE 4/1/2020

Modified Industry Description

200A 1P RT MAIN 20/40 LC

AD Description

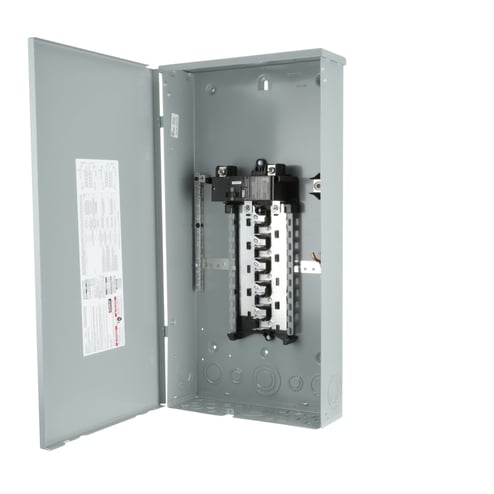

Murray LW2040B1200 1-Phase Low Voltage Rock Solid Main Breaker Load Center, 120/208 VAC, 120/240 VAC, 200 A, 22 kA Interrupt

Specifications

Amperage Rating
200
Application
Residential
Country of Origin
MX
Enclosure
OutdoorType3R
Interrupt_Rating
22000
Length1
10
Mounting
Surface
Phase
1
Special_Features

  • "Swiss Cheese" style neutral bars provide multiple 1/0 connection points
  • A rigid and sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired, no back feeding required
  • All units include factory installed ground bar and isolated neutral
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • The outdoor enclosure has a slide hinge door for the easiest of installation and can be removed by backing out only one screw
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications

Standard
NEMA 3R
Sub_Brand
UL
Type
SL Transfer Switches
Voltage Rating
120
