Juno Juno UPF12-WH


Description

Industry Description

12 Inch Pro-Series Fluorescent, Designer White, with Switch

Modified Industry Description

12IN T5 Pro Fluor Undercab

AD Description

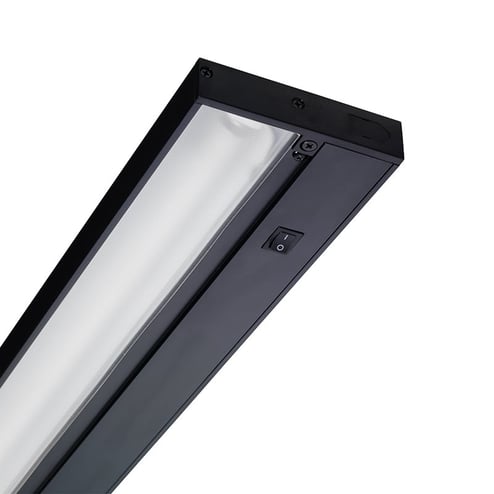

Juno® UPF12 WH Pro UPF Under Cabinet Light, (1) T5 Fluorescent Lamp, 120 VAC, Designer White Housing

Vendor Description

Juno® Pro-series Fluorescent undercabinet fixtures offer high-quality construction and efficient illumination in an easily concealed, low-profile design. These T5 fluorescent luminaires provide energy efficiency, long lamp life, and cool operation, making them an ideal solution for undercabinet, under-shelf, and task lighting. Pro-series Fluorescent 22, 34 and 46 in fixtures are available with Passive Infrared (PIR) Occupancy Sensor, field set for 30 sec to 30 min.

Specifications

Amperage Rating
0.13
Application
Damp Location
Color
Designer White
Country of Origin
MUL
Dimensions
12 in L x 4-1/2 in W x 1 in H
Finish
Designer White
Lamp_Type
T5 Fluorescent
Length1
64.2000
Series
Pro UPF
Special Features

  • 0.52 power factor
  • 21 in W beam
  • Extruded non-yellowing clear UV/impact resistant acrylic lens
  • Fixtures may be mounted flush to the backsplash or up against the front lip of the cabinetry using captive mounting screws
  • Instant start
  • Integral occupancy sensor is optional on Pro-Series fluorescent 22, 34 and 46 in fixtures, to help meet building codes
  • Modular design enables up to 10 fixtures to plug together using the supplied internal straight connector or optional jumper cords
  • Premium UV stabilized acrylic diffuser stays pliable and will not discolor
  • Slim, 1 in extruded aluminum housing is easy to conceal, solid front design minimizes perceived fixture brightness
  • State of the art 120 V electronic ballast provides instant lamp starting and quiet, flicker-free operation
  • Switch available with convenient on/off rocker switch
  • To install a portable fixture, use the optional 3 wire grounded cord and plug or specify CP6 option
  • UPF series are optimized with a center rear wiring access compartment and push in electrical connectors for quick electrical connection using non-metallic or armored cable
  • UPF series fixtures offer several convenient methods for installation and can be installed as direct wire or portable luminaires
Sub_Brand
Juno
Voltage Rating
120
